Manual Loading Full Mechanical Rockwell Hardness Tester Dial Reading 0.5HR Resolution

Manual Loading Full Mechanical Rockwell Hardness Tester Dial Reading 0.5HR Resolution
Manual Loading Full Mechanical Rockwell Hardness Tester Dial Reading 0.5HR Resolution

Large Image :  Manual Loading Full Mechanical Rockwell Hardness Tester Dial Reading 0.5HR Resolution

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: DigiRock HR1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 60 Sets per Month
Detailed Product Description
Reading: Dial Gauge Resolution: 0.5HR
Height: 170mm Throat: 128mm
Loading: Manual Initial Force: 10Kgf (98N)

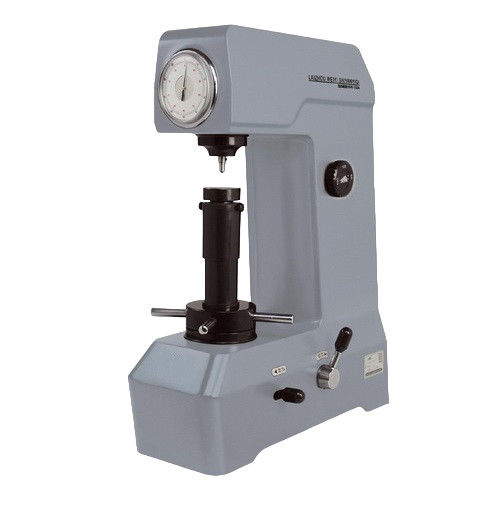

Manual Loading Full Mechanical Rockwell Hardness Tester Dial Reading 0.5HR Resolution



Technical Data Download: iqualitrol Rockwell Tester DigiRock HR1



Iqualitrol DigiRock HR1 Rockwell hardness tester is a popular-used hardness testing instrument to measure the hardness of the metal materials. No need power supply, the speed of the test force loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It has easy operation and stable performance, therefore it is widely used.



Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.



Technical Specification:

Model DigiRock HR1
Initial Test Force 10kgf (98.07N)
Total Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Manual
Hardness Reading Dial Reading
Resolution 0.5HR
Max. Height of Specimen 170mm
Throat 128mm
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 500×225×640mm, Packing Dimension: 650×370×950mm
Weight Net Weight: 65kg, Gross Weight: 80kg
