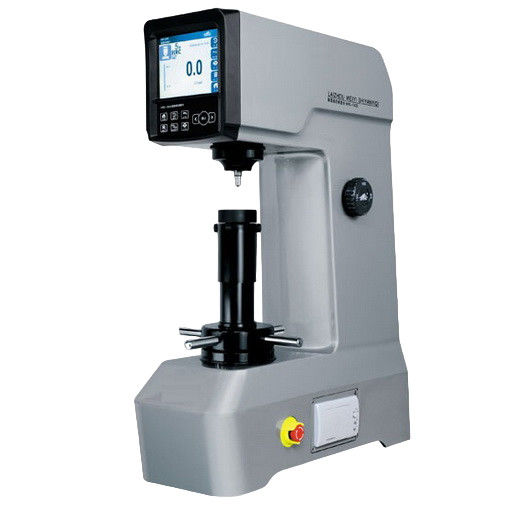

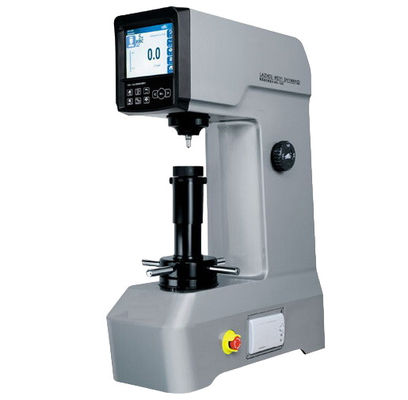

Value Compensation Digital Rockwell Hardness Testing Machine HRS-150S with Built-in Printer

Value Compensation Digital Rockwell Hardness Testing Machine HRS-150S with Built-in Printer
Value Compensation Digital Rockwell Hardness Testing Machine HRS-150S with Built-in Printer

Large Image :  Value Compensation Digital Rockwell Hardness Testing Machine HRS-150S with Built-in Printer

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: HRS-150S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 50 Sets per Month
Detailed Product Description
Reading: 5.6" LCD Display Data Output: Built-in Printer, RS232
Vertical Space: 170mm Horizontal: Space 118mm
Resolution: 0.1HR Dwell Time: 1-60 Seconds



Value Compensation Digital Rockwell Hardness Testing Machine HRS-150S with Built-in Printer



Technical Data Download: iqualitrol Rockwell Tester HRS-150S



Technical Specification:

Model HRS-150S
Initial Test Force 10kgf (98.07N)
Total Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading LCD Display
Test Scale HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Data Output Built-in Printer, RS232 Interface
Resolution 0.1HR
Dwell Time 0~60s
Max. Height of Specimen 170mm
Throat 118mm
Power Supply AC220V, 50Hz
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 520×215×700mm, Packing Dimension: 650×370×950mm
Weight Net Weight: 78kg, Gross Weight: 100kg



Brief Introduction:

RS232 Interface Touch Screen Digital Rockwell Hardness Testing Machine with Built-in Printer
HRS-150S Digital Rockwell hardness tester adopts the high resolution color screen with high brightness display.

HRS-150S can show and set the present scale, test force, test indenter, dwell time and hardness conversion.



Value Compensation Digital Rockwell Hardness Testing Machine HRS-150S with Built-in Printer 0


The main functions as follows:
► Support all the Rockwell scales;
► With hardness conversion among all metal hardness scales;
► Adjustable back light with energy-saving mode;
► Real time data saving in the folder, totally six folders, the data can be arbitrary copied, cut, deleted, pasted;
► The hardness scale, data range and the remarks can be selective displayed, similar to Excel function;
► Test results can be saved in real time and can be selective checked and printed out, automatic calculation of maximum, minimum and average value;
► Increase the operation process interface, easy to use; With RS232 interface for connecting to the computer.

Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.


Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
ф1.588mmBall Indenter 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Weight A, B, C 3 pcs
Power Cable 1 pc Fuse 2A 2 pcs
Level 1 pc Horizontal Regulating Screw 4 pcs
Screw Driver 1 pc Spanner 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy



The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.

Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales) and Rockwell superficial testing (e.g., 30 N and 30 T scales).

High Rockwell hardness numbers represent hard materials and low numbers soft materials.

Value Compensation Digital Rockwell Hardness Testing Machine HRS-150S with Built-in Printer 1
