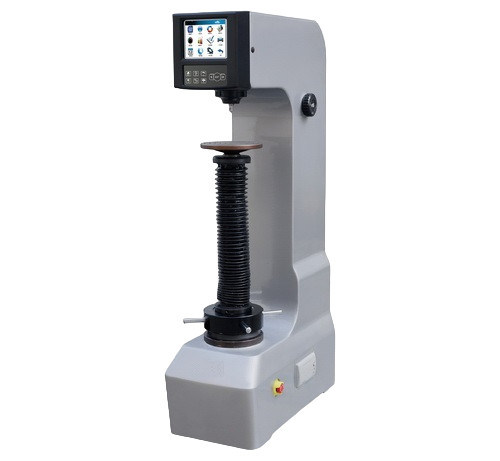

Data Analysis Touch Screen Rockwell Hardness Tester SHR-150H with Max Height 400mm

Data Analysis Touch Screen Rockwell Hardness Tester SHR-150H with Max Height 400mm
Data Analysis Touch Screen Rockwell Hardness Tester SHR-150H with Max Height 400mm

Large Image :  Data Analysis Touch Screen Rockwell Hardness Tester SHR-150H with Max Height 400mm

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: SHR-150H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: SHR-150H Controller: Dual Control Of Touch Screen And Touch Buttons
Data Process: Single-point And Multi-point Statistical Modes Pre-test Locking: Pre-test Force Loading Automatic Locking System To Avoid Over Load
Test Height: Max 400mm, Depth Throat 160mm Compensation Range: -10.0HR~+10.0HR; Step 0.1HR



Data Analysis Touch Screen Rockwell Hardness Tester SHR-150H with Max Specimen Height 400mm



Technical Data Download: iqualitrol Rockwell Tester SHR-150H



Product Overview:

The iqualitrol Rockwell SHR-150H uses the method of measuring the indentation depth, and the hardness value is read directly through the indication. Therefore, the operation is simple and convenient, easy to master, and has high work efficiency.



It is suitable for the inspection of batches of parts; the Rockwell hardness test uses a diamond indenter and ball indenter can measure both hard and soft samples and has a wide range of uses. Therefore, the Rockwell hardness test is widely used in production and has become the main testing method to inspect product quality and determine reasonable processing technology.



Rockwell hardness tester is a test instrument commonly used by manufacturing enterprises, large and medium-sized universities, and scientific research institutions for hardness testing, teaching and scientific research.



Product advantages

1. Automatic loading and unloading, automatic calculation of 15 kinds of Rockwell hardness scales such as HRA;



2. Integrated data processing and display dual-core 32-bit ARM processor;



3. The equipment integrates dual control of touch screen and touch buttons to adapt to complex working conditions: the touch screen facilitates users to set parameters, the touch screen uses a large color LCD display, and the human-computer interaction interface is simple and friendly; the touch buttons abandon the safety hazards caused by traditional mechanical buttons. and application limitations;



4. The motor controls the loading, dwell and unloading of the test force, eliminating the human error of the manual Rockwell hardness tester.



5. The system integrates three hardness conversion standards, ASTM_E140-12be, ISO_18265-2013, and GB/T 1172, and automatically performs hardness conversion, eliminating the need to waste time querying cumbersome hardness comparison tables.



6. The self-developed IQUALITROL system has built-in single-point and multi-point statistical modes, providing 200 sets of single-point data storage and 100 sets of multi-point data storage. And the multi-point mode provides hardness distribution curve data analysis function, automatically calculating the maximum value, minimum value, and average value, which is convenient for users to analyze test data.



7. Built-in printer for data printing;



8. Pre-test force loading automatic locking system. When the pre-test force reaches 98.07N (10kgf), the system automatically locks the lifting screw to prevent overshoot of the pre-load test force.



Technical Specifications:

Rockwell Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Initial Force 98.07N (10kgf)
Total Force 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
Dwell Time 0-60S, adjustable
Display Touch Screen, resolution 640×480
Resolution 0.1HR
Loading Method Auto Loading, Dwell, Unloading
Hardness Conversion HRA, HRB, HRC, HRE, HRF, HRG, HRK, HRH, HR15T, HR30T, HR45T, HR15N, HR30N, HR45N, HV0.1, HV1, HV5, HV10, HV15, HV30, HV50, HBS2, HBS10, HBS30, HBW, HK0.5, HK1, HLD, HS, Mpa
Conversion Standards ASTM_E140-12be, ISO_18265-2013, GB/T 1172
Value Correction -10.0HR~+10.0HR; Step 0.1HR
Data Process providing 200 sets of single-point data storage and 100 sets of multi-point data storage
Printing Built-in printer
Max Specimen Height 400mm
Depth Throat 160mm
Dimension 540×275×1020mm
Net Weight 138kg
Test Standards GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18
