Dial Reading Motorized Loading Rockwell Hardness Tester HRD-150 with Emergency Stop

Dial Reading Motorized Loading Rockwell Hardness Tester HRD-150 with Emergency Stop
Dial Reading Motorized Loading Rockwell Hardness Tester HRD-150 with Emergency Stop

Large Image :  Dial Reading Motorized Loading Rockwell Hardness Tester HRD-150 with Emergency Stop

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: HRD-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 30 Sets per Month
Detailed Product Description
Loading: Motorized Loading Hardness: Dial Reading 0.5HR
Height: 170mm Throat: 128mm
Dwell Time: 0 - 60 Seconds, Adjustable Initial Force: 10Kgf (98N)

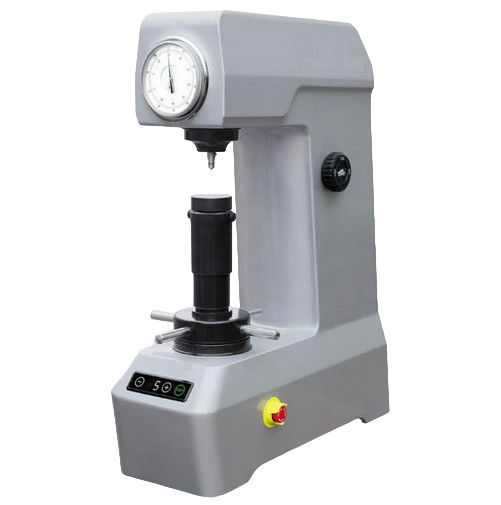

Dial Reading Motorized Loading Rockwell Hardness Tester HRD-150 with Emergency Stop



Technical Data Download: iqualitrol Rockwell Hardness Tester HRD-150


Product Profile:
HRD-150 Motorized Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel.

It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability.

Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.


Technical Specification:

Model HRD-150
Initial Test Force 10kgf (98.07N)
Total Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading Dial
Resolution 0.5HR
Dwell Time 2~60s
Max. Height of Specimen 170mm
Throat 128mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 520×215×700mm, Packing Dimension: 650×370×950mm
Weight Net Weight: 78kg, Gross Weight: 100kg


Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
ф1.588mmBall Indenter 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Weight A, B, C 3 pcs
Power Cable 1 pc Fuse 2A 2 pcs
Level 1 pc Horizontal Regulating Screw 4 pcs
Screw Driver 1 pc Spanner 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy
