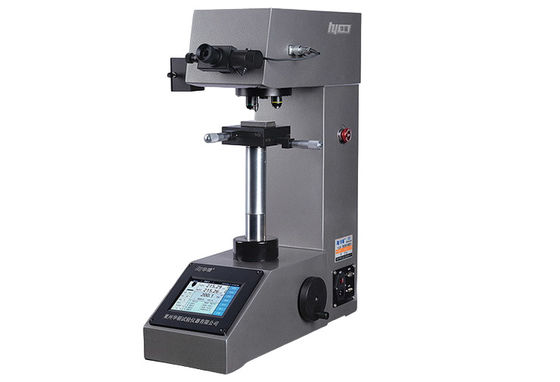

Built-in Printer USB Port Digital Vickers Hardness Tester IQUALITROL HVS-5Z with Mass Storage

Built-in Printer USB Port Digital Vickers Hardness Tester IQUALITROL HVS-5Z with Database Storage

Main features:

● Automatic turret; frictionless spindle, high test force accuracy;

● Electronic force, fully automatic closed-loop loading control system;

● High-precision optical measurement system, precision coordinate test bench;

● Adopt ARM high-speed processor, 5.6-inch LCD touch screen;

● Dynamic display of time-force curve during loading and unloading process;

● The screen can display test force, indentation length, dwell time, number of measurements, etc.;

● The test process is automated, the operation is simple, and there is no human error;

● Automatic correction of concave and convex surface hardness value;

● With database storage data function, test data is stored synchronously and can be exported;

● Equipped with USB and RS232 interfaces, it is convenient for users to process data;

● Equipped with a micro printer, the test results can be printed directly;

● Knoop indenter can be selected for Knoop hardness test;

● IQUALITROL self-developed Vickers vision measurement system can realize online function through data line, control all actions of hardness tester on computer, automatically capture indentation image, automatically measure hardness value, automatically generate hardness curve, automatically calculate effective hardening layer depth, and measure fracture toughness of cemented carbide;

● Accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E92.

Application range:

● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;

● Cemented carbide, glass, ceramics, agate, gemstones, etc.;

● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenching hardened layer;

● Vickers hardness measurement of small parts such as thin plates and thin sheets.

Technical Specifications:
