| Model: | 200HV-5, Manual Turret, Weights Loading | Loading Control: | Automatic Loading, Dwell, Unloading |
|---|---|---|---|
| Test Space: | Height 130mm, Depth Throat 110mm | Optic System: | Eyepiece: 10x Non-Digital Eyepiece Objectives: 10x, 40x, Step 0.03μm |
| Illumination: | 12V/20W, Lightness Adjustable | Application: | Cemented Carbide, Glass, Ceramics, Agate, Gemstones |

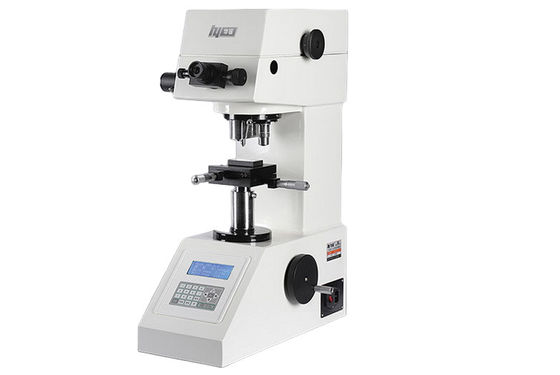

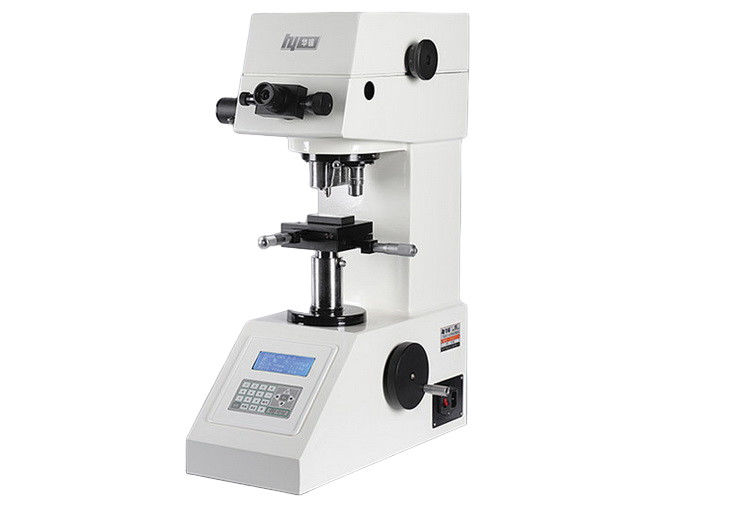

Low Load 5Kgf Vickers Hardness Tester IQUALITROL 200HV-5 by Weights Loading
Technical Data Download: iqualitrol Vickers Hardness Tester 200HV-5
Main features:
● Manual turret, direct loading of weights, high test force accuracy;
● Test force covers micro Vickers and Low Load Vickers test requirements;
● Automated test process, no human error;
● Equipped with precision coordinate test table;
● Optional Knoop indenter for Knoop hardness test;
● Accuracy meets GB/T4340.2 ISO6507-2 and US ASTM E92.
Application range:
● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;
● Cemented carbide, glass, ceramics, agate, gemstones, etc.;
● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenching hardened layer;
● Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical Specifications:
| Model | Vickers Hardness Tester IQUALITROL 200HV-5 |
| Scales | HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5 |
| Test Force |
1.961, 2.942, 4.904, 9.807, 19.61, 24.52, 29.42, 49.04(N) 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5(Kgf) |
| Force Change | by rotating force knob to select test force and displays on touch screen |
| Loading Control | Automatic loading, dwell, unloading |
| Turret | Manual Turret |
| Display | Small LCD Display |
| Dwell Time | 1~60 seconds, adjustable, |
| Test Modes | HV/HK |
| Vickers Hardness Range | 5-3000HV |
| Test Space | Height 130mm, depth throat 110mm |
| Optic System |
Eyepiece: 10x Non-Digital Eyepiece Objectives: 10x, 40x, step 0.03μm Total magnifications: 100x, 400x, range 0～200μm |
| XY Test Anvil | Dimension: 100×100(mm), Travel: 25×25(mm), resolution: 0.0625μm |
| Illumination | 12V/20W, lightness adjustable |
| Power Supply | AC220V/50Hz, power consumption: 100W |
| Weight and Dimension | 486×337×657mm, weight: 68KG |
