Product Details:
Payment & Shipping Terms:
|
| Features: | Automatic Control, The Machine Can Be Turned On And Off With The Salt Spray Test Chamber | Working Principle: | Gas And Water Of The Salt Mist Are Separated By Water Flow, And The Mist Is Turned Into Clean Air Through Polymer Filter |
|---|---|---|---|
| Dimension: | 30x40x160cm(WxDxH) | Model: | QT-10 Water Gas Separation And Collection |
| Filter Cleaning: | Manual Regular Cleaning Of Discharge And Clearing Of Filters | Material: | Outer Box Is Made Of PVC Anti-corrosion Processing |

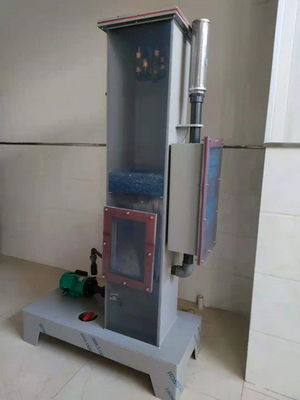

Outlet Water Gas Separation and Collection Box Device for Salt Spray Test Chambers
Technical Specification:
| Name | Outlet Water Gas Separation and Collection Box |
| Model | QT-10 |
|
Working Dimension |
30x40x160cm(WxDxH) |
| Overall Dimension | 62*86*178cm |
| Power Supply | AC1ø 220V 15A 50HZ |
| Materials and Features: | |
| 2.1 | The outer box is made of PVC anti-corrosion processing |
| 2.2 | The inner box is made of PVC heat-resistant and impact-resistant board with a thickness of 10mm. |
| 2.3 | The gas and water of the salt mist are separated by water flow, and the mist is turned into clean air through polymer filter equipment and discharged outdoors, achieving environmental protection. |
| 2.4 | Special treatment for evaporation |
| 2.5 | Adopting electronic automatic control, the machine can be turned on and off with the salt spray test chamber |
| 2.6 | Manual regular cleaning of discharge and clearing of filters |
| 2.7 | Use corrosion-resistant water pumps to handle mist gas |
| 2.8 | Silicone seal is used for strong corrosion resistance. |
Brief Introduction:
The salt spray mist produced after the salt spray test is still highly corrosive. Although it will not cause harm to the human body, it is easy to damage the environment around the equipment over a long period of time, such as causing the surrounding metal products to rust, the surrounding walls to corrode, and even damage the nearby ecological environment, and salt crystals to form on the ground.
In order to meet market demand, IQUALITROL has developed a new salt spray treatment device, which has excellent purification effect on salt spray, with a purification rate of up to 99%.
It has the advantages of small footprint, easy installation, energy saving, good purification effect, stable equipment operation, simple and convenient maintenance, corrosion-resistant materials, long service life, etc.

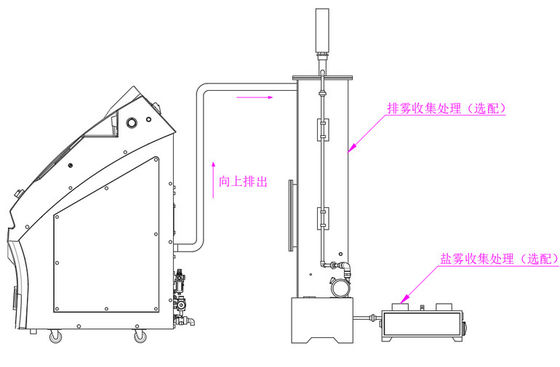

This product can be used in conjunction with the salt spray test chamber. Through a simple pipe connection, it directly filters the mist discharged from the exhaust port of the salt spray test chamber.
Through a double purification method, the exhaust gas meets the direct discharge standard. First, an alkaline solution is sprayed to achieve acid-base neutralization, and then the water vapor discharged from the spray tower is dried by rapid drying.
The salt spray mist purification box is a waste gas treatment device with low energy consumption and good effect. It uses double purification to make the exhaust gas meet the direct discharge standard.
It first uses alkaline solution spraying to achieve acid-base neutralization, and then uses rapid drying to dry the water vapor discharged from the spray tower.
Salt spray mist purification box, also known as salt spray mist treatment device, salt spray exhaust gas processor, salt spray absorption tower, salt spray absorber, etc.
It is mainly used in the fields of neutral salt spray test waste gas emission, acid salt spray test waste gas emission, acidic atmosphere test waste gas emission, sulfur dioxide test waste gas emission, etc.
