PLC-controlled metallographic sample cutting machine iqualitrol METALL-160

PLC-controlled metallographic sample cutting
machine METALL-160

Technical Specifications:

Brief Introduction:

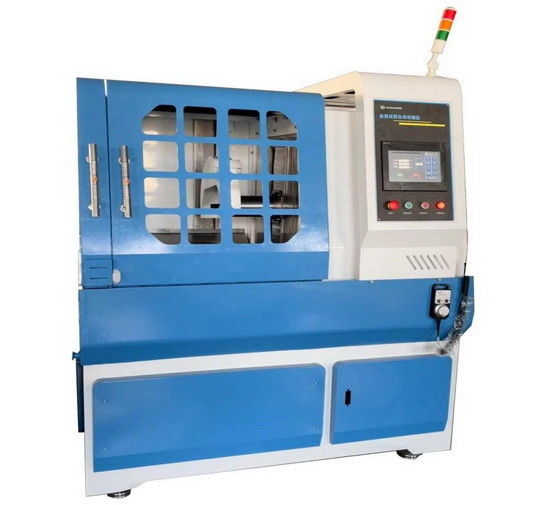

The iqualitrol METALL-160 is a PLC-controlled metallographic sample cutting machine. It uses a control system to drive the stepper, stepper motor motion control, automatic and precise control of the X, Y, and Z directions. The cutting speed can be changed according to the hardness of the material to achieve the fastest cutting effect. The cutting spindle speed is frequency-controlled and the cutting line speed of the cutting blade can be adjusted. It has very high reliability and control capabilities.

1. Electronic handwheel, automatic and arbitrary conversion, X, Y, Z manual adjustment and three-speed adjustment can better control the moving speed and cut the knife.

2. The touch screen displays various cutting data, which is more accurate, clear at a glance, and accurately positioned, so that the workpiece can be better positioned during cutting.

3. There are three functional cutting methods: chopping cutting, intermittent cutting, and reciprocating cutting. When cutting, the cutting speed can be adjusted according to the hardness of the material to achieve the purpose of fast cutting of the workpiece. When cutting steel solid cylinders, different cutting methods can be selected.

4. In order to facilitate the cleaning of the cutting room and the safety of the spindle motor, we have adopted electromechanical separation; the cutting room motor is waterproof and isolated. An extra-large observation window is installed on the cutting room safety protection door, so that users can easily observe the entire cutting process of the sample; LED lighting is installed in the cutting room to achieve effective lighting of the entire cutting room area; increase the brightness and clarity of the workroom;

5. The design is more humane and uses ergonomic principles. The biggest features: low noise, easy operation, beautiful appearance, safe use. It is one of the necessary equipment for laboratory sample preparation.

Features:

The frequency conversion motor is connected to the spindle through a poly-V belt, and the cutting disc is installed on the spindle to better strengthen the rigidity of the spindle, making it more solid during cutting and improving the stability of the machine. The frequency conversion speed regulation of the spindle is more stable. The simple design, solid structure, and direct drive provide power transmission between the motor and the cutting disc, and ensure high efficiency, low noise, minimal maintenance and longer service life.

Designed for large-capacity cutting of large workpieces, METALL-160 makes it easier to maintain machine parts and handle large workpieces. The sliding door and hinged door give you more space and unlimited access, so that large workpieces can be loaded in the right position more conveniently. The workpiece can also be sent into the cutting room from three directions: top, front, and left.

The working area adopts a fully enclosed structure and has a transparent protective cover for observation during cutting. It is equipped with cooling water to provide storage of coolant. Do not use tap water as coolant. After the cutting work is completed, use the left flushing faucet to flush the indoor garbage and close the safety door.
