Product Details:
Payment & Shipping Terms:
|
| Model: | HBRVS-187.5, Touch Screen | Data Process: | USB And RS232 Interfaces |
|---|---|---|---|
| Data Printing: | Micro Printer, Which Can Directly Print The Hardness Test Results | Touch Screen: | Displays The Current Test Scale, Test Force, Dwell Time, Hardness Conversion Value, Indenter Type, Etc |

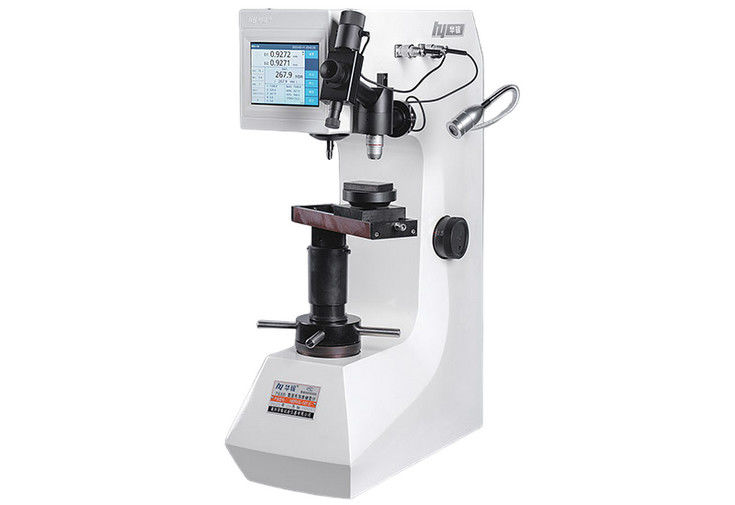

Touch Screen Brinell Rockwell Vickers Multifunction Hardness Tester HBRVS-187.5
Main Features:
● The IQUALITROL HBRVS-187.5 is a weight-loaded digital multifunctional hardness tester with three hardness test functions: Brinell, Rockwell and Vickers;
● Optimized mechanical structure and diamond-shaped appearance design;
● The test process is automated, the hardness value displays on touch screen, and there is no human error;
● It uses an ARM high-speed processor and a 5.6-inch LCD touch screen, and the interface is easy to operate.
● Touch screen displays the current test scale, test force, dwell time, hardness conversion value, indenter type, etc.;
● It has software calibration function; the indenter is dynamically displayed during loading and unloading, and the test status is observed in real time;
● Equipped with USB and RS232 data interfaces, which is convenient for users to process data;
● It has the function of storing data in the database, and the test data is stored synchronously and can be exported;
● Equipped with a micro printer, which can directly print the hardness test results;
● Optional computer system for data upload and intelligent control operations;
● The accuracy complies with GB/T230.2, GB/T231.2, GB/T4340.2; ISO6508-2, ISO6506-2, ISO6507-2, and American ASTM E18, ASTME10, ASTM E92.
Main Parameters:
| Model | HBRVS-187.5 | |
| Test Force | Rockwell | 60,100,150kgf(588,980,1471N) |
| Brinell | 31.25,62.5,187.5kgf(306.5,612.9,1839N) | |
| Vickers | 30,100kgf( 294.2,980.7N) | |
| Hardness Scales | Rockwell | HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV |
| Brinell |
HBW2.5/31.25 ,HBW2.5/62.5 HBW5/62.5 ,HBW2.5/187.5 |
|
| Vickers | HV30,HV100 | |
| Range of Measurement | Rockwell | 20-95HRA,10-100HRBW,20-70HRC |
| Brinell | 5-650HBW | |
| Vickers | 5-3000HV | |
| Indenters | Diamond Rockwell Indenter, Diamond Vickers Indenter, Ф1.588mm, Ф2.5mm,Ф5mm Tungsten Carbide Brinell Ball Indenter | |
| Magnifications | Brinell: 37.5X, 75X; Vickers: 75X, 150X | |
| Hardness Resolution | Rockwell: 0.1HR; Brinell: 0.5μm, 1μm; Vickers: 0.25μm, 0.5μm | |
| Dwell Time | 1 to 99 seconds | |
| Data Output | Printer, USB and RS232 ports | |
| Distance between Indenter Center and Wall | 165mm | |
| Available Maximum Height of Specimen | Rockwell | 210mm |
| Brinell, Vickers | 140mm | |
| Outline Dimension | 520*260*730mm | |
| Power Supply | AC220V, 50/60Hz | |
| Weight | 100kg | |
Main Accessories:
| Large Round Anvil | One PC | Large Round Anvil | One PC |
| V-type Anvil | One PC | Diamond Cone indenter | One PC |
| φ2.5,φ5 Steel Ball head | Each one | Diamond Vickers Indenter | One PC |
| Standard Rockwell Hardness Block | Five Blocks | Standard Vickers Hardness Block | One Block |
| Standard Brinell Hardness Block | One Block | φ1.588 Steel Ball Indenter | One PC |
| Objective lens: 2.5X, 5X and 10X | Each for One | Slide Test Anvil | One pc |
| Measuring Eyepiece 15X | One pc | Measuring Base | One pc |
| Mini Printer | One pc |
Application range:
Brinell Hardness Test
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys, etc.;
● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
Rockwell Hardness Test
● Determine the Rockwell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Rockwell hardness of high-hardness alloy materials such as cemented carbide;
● Determine the Rockwell hardness of heat-treated materials such as quenching and tempering;
● Determine the Rockwell hardness of certain non-metallic materials such as plastics and bakelite.
Vickers Hardness Test
● Measure the Vickers hardness of ferrous metals, non-ferrous metals, surface coatings, laminated metals, etc.;
● Measure the Vickers hardness of cemented carbide, glass, ceramics, agate, gemstones, etc.;
● Measure the depth and gradient of the carburized layer, nitrided layer, etc. and the quenching hardened layer;
● Measure the Vickers hardness of small parts such as thin plates and sheets.
