| Model: | 420HRSS-150Z | Loading Control: | Electronic SENSOR Loading, Closed-loop Control Of Test Force |
|---|---|---|---|
| Z Lifting Mode: | One-button Start, Automatic Lifting Of The Z Axis | Force Compensation: | Automatic Test Force Compensation, High Force Value Accuracy |

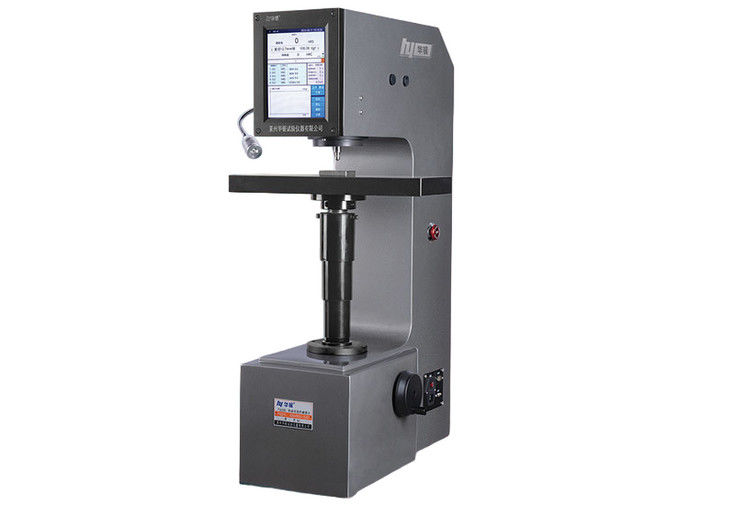

Fully Automatic Superficial Twin Rockwell Hardness Tester IQUALITROL 420HRSS-150Z
Main Features:
● iqualitrol 420HRSS-150Z apply Electronic SENSOR loading, closed-loop control of test force;
● Clear and intuitive display, stable and reliable performance;
● One-button start, automatic lifting of the Z axis, automatic completion of the entire test process, and manual lifting of the screw rod;
● Adopting ARM high-speed processor, 8-inch LCD touch screen, easy interface operation;
● Can display the current test scale, test force, dwell time, hardness conversion value, indenter type, etc.;
● Automatic loading, dwell and unloading test force;
● Automatic test force compensation, high force value accuracy; convex hardness value can be automatically corrected;
● With software calibration function; dynamic display of displacement-force value curve during the test process, easy to observe and analyze;
● The upper and lower limits of the test hardness can be set, and the buzzer automatically prompts when the hardness exceeds the limit;
● Model 420HRSS-150Z has 30 scales in total, including 15 Rockwell hardness scales and 15 surface Rockwell scales;
● Equipped with USB and RS232 data interfaces, convenient for users to process data;
● With database storage data function, test data can be stored synchronously and exported;
● Equipped with a micro printer, which can directly print hardness test results;
● Optional host computer system for data upload and intelligent control operation;
● Accuracy meets GB/T230.2 ISO6508-2 and American ASTME18.
Technical Specification:
| Model | 420HRSS-150Z |
| Initial Test Force | 3kgf (29.42N), 10kgf (98.07N) |
| Total Test Force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Automatic Test Table | Automatic lifting system, One Key to Complete |
| Hardness Reading | Touch Screen |
| Test Scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW |
| Data Output | RS232 Interface |
| Resolution | 0.1HR |
| Dwell Time | 0~99s |
| Vertical Space | 300mm |
| Throat | 160mm |
| Power Supply | AC220V/50Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 533x230x875mm, Packing Dimension: 720×460×1070mm |
| Weight | Net Weight: 110kg, Gross Weight: 130kg |
Application range:
Rockwell hardness
● Determine the Rockwell hardness of soft metal materials such as ferrous metals and non-ferrous metals;
● Determine the Rockwell hardness of high-hardness alloy materials such as cemented carbide;
● Determine the Rockwell hardness of heat-treated materials such as quenching and tempering;
● Determine the Rockwell hardness of certain non-metallic materials such as plastics and bakelite.
Superficial Rockwell hardness
● Determine the surface Rockwell hardness of soft metal materials such as ferrous metals and non-ferrous metals;
● Determine the surface Rockwell hardness of metals after surface treatment (carburizing, nitriding, electroplating, etc.);
● Determine the surface Rockwell hardness of heat-treated materials such as quenching and tempering;
● Determine the surface Rockwell hardness of high-hardness alloy materials such as cemented carbide;
● Determine the surface Rockwell hardness of certain non-metallic materials such as plastics and cardboard.
Main accessories:
● Large flat test bench: 1 pc
● Small flat test bench: 1 pc
● V-type test bench: 1 pc
● Diamond cone indenter: 1 pc
● 1.588mm tungsten carbide alloy ball indenter: 1 pc
● Standard Rockwell hardness block: 5 pcs
● Standard surface Rockwell hardness block: 4 pcs (only for 420HRSS-150Z)
● Micro printer: 1 pc
