| Model: | 310HRSS-150, Twin Rockwell Tester | Initial Test Force: | 3kgf (29.42N), 10kgf (98.07N) |
|---|---|---|---|
| Data Process: | RS232 Data Interface | Force Control: | Closed-loop Control Of Test Force |

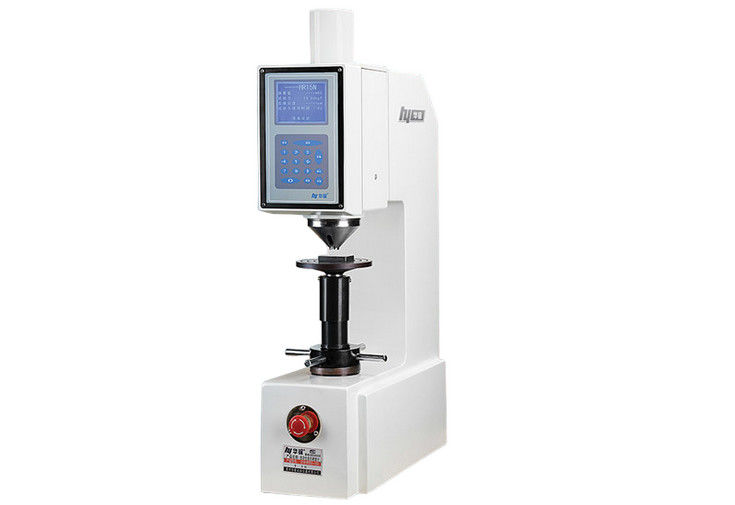

Fully Automatic Twin Rockwell Hardness Tester IQUALITROL
310HRSS-150 with RS232
Main Features:
● Closed-loop control of test force;
● Automatic tracking measurement, no measurement error caused by frame deformation and workpiece deformation;
● Automatic clamping of workpiece, no need to manually apply initial test force, can measure special-shaped parts;
● High-precision grating displacement measurement system;
● LCD display, menu operation, complete functions (data processing, hardness conversion, etc.);
● RS232 data interface;
● Optional computer and equipped with special Rockwell software;
● Accuracy meets GB/T230.2, ISO 6508-2 and American ASTM E18.
Technical Specifications:
| Model | 310HRSS-150 |
| Initial Test Force | 3kgf (29.42N), 10kgf (98.07N) |
| Total Test Force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Rockwell Ranges | 20-95HRA,10-100HRBW,10-70HRC,70-94HR15N,42-86HR30N,20-77HR45N,67-93HR15TW,29-82HR30TW,10-72HR45TW |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Test Scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW |
| Data Output | RS232 Interface |
| Resolution | 0.1HR |
| Dwell Time | 0~99s |
| Vertical Space | 170mm, Indenter movement range 50mm |
| Throat | 150mm |
| Power Supply | AC220V/50Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 533x230x915mm, Packing Dimension: 720×460×1270mm |
| Weight | Net Weight: 130kg, Gross Weight: 140kg |
