| Model: | 400HRD-150B | Test Space: | Height 460mm, Depth Throat 165mm |
|---|---|---|---|
| Loading Control: | Automatically Loading And Unloading, And Runs Smoothly Without Vibration | Rockwell Range: | 20-95HRA, 10-100HRBW, 10-70HRC |

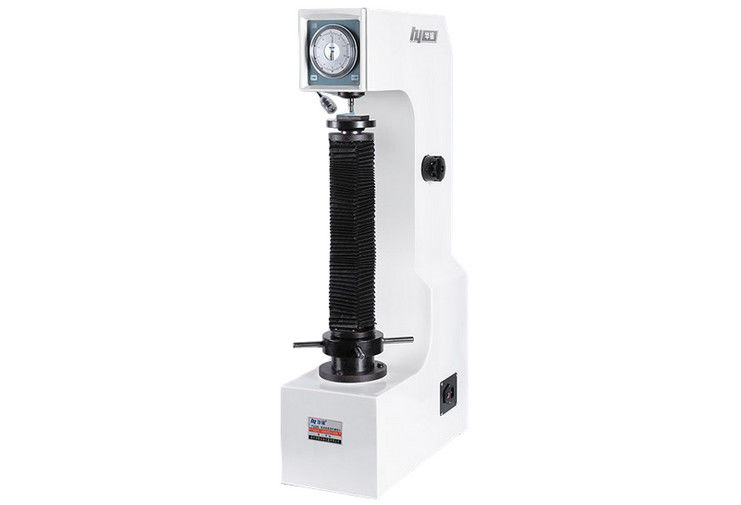

Motorized Loading Heighten 460mm Rockwell Hardness Tester
400HRD-150B with Throat 165mm
Main Features:
1, The body shell of iqualitrol 400HRD-150B is cast in one piece, with a solid structure, good rigidity, reliability and durability;
2, The high stroke 460mm makes it convenient for users to measure the Rockwell hardness of larger workpieces;
3, Automatically loading and unloading, and runs smoothly without vibration;
4, The test process is automated, without human operation errors;
5, Direct dial reading, HRA, HRBW, HRC scales;
6, Other Rockwell scales can be selected;
7, The accuracy meets GB/T230.2, ISO 6508-2 and American ASTM E18.
Technical Specification:
| Model | 400HRD-150B |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Rockwell Ranges | 20-95HRA,10-100HRBW,10-70HRC, |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Resolution | 0.5HR |
| Dwell Time | 0~99s |
| Vertical Space | 460mm |
| Throat | 165mm |
| Power Supply | AC220V/50Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 540x260x1015mm, Packing Dimension: 770×480×1370mm |
| Weight | Net Weight: 140kg, Gross Weight: 180kg |
