| Model: | HR-150A | Vertical Space: | 170mm, Depth Throat 135mm |
|---|---|---|---|
| Test Process: | Mechanical Manual Test Process, No Need For Electrical Control | Display: | Direct Dial Reading, HRA, HRBW, HRC Scales |

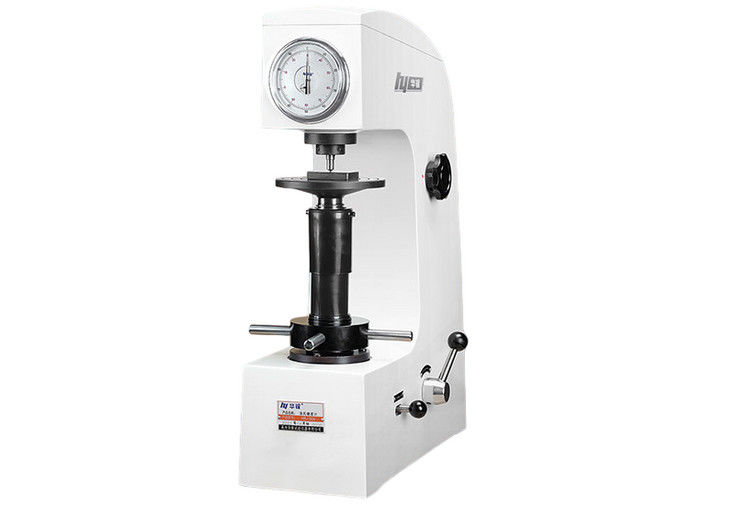

Full Mechanical Manual Rockwell Hardness Tester iqualitrol HR-150A with Dial Gauge
Main Features:
● Manual Rockwell hardness tester, reliable, durable, high test efficiency;
● Direct dial reading, HRA, HRBW, HRC scales;
● Optional Rockwell other scales;
● Precision hydraulic buffer, adjustable loading speed;
● Mechanical manual test process, no need for electrical control;
● Widely used in quality monitoring in production sites, strong adaptability to working environments;
● Accuracy meets GB/T230.2 ISO6508-2 and ASTM E18.
Technical Specification:
| Model | Iqualitrol HR-150A |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Rockwell Ranges | 20-95HRA,10-100HRBW,10-70HRC, |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Resolution | 0.5HR |
| Dwell Time | 0~99s |
| Vertical Space | 170mm |
| Throat | 135mm |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 520x230x725mm, Packing Dimension: 770×380×970mm |
| Weight | Net Weight: 70kg, Gross Weight: 90kg |
