| Top Cover: | Transparent Top Cover, Easy To Observe Samples, Built-in Wheel Cooling | Safety Switch: | Blade Can Stop Immediately Once The Cover Is Open |
|---|---|---|---|
| Blade Feed: | Automatic/manual Dual Mode; Blade Feed Movement: Linear Or Pulse | Motor Speeds: | High Torque; Variable Speed And Max Speed Can Be Customized Set |
| Control Panel: | Color Touchscreen Control Panel, Easy To Use | Cutting Table: | Hard Anodized Aluminum Table With T-slots. Easy To Change The Vises |

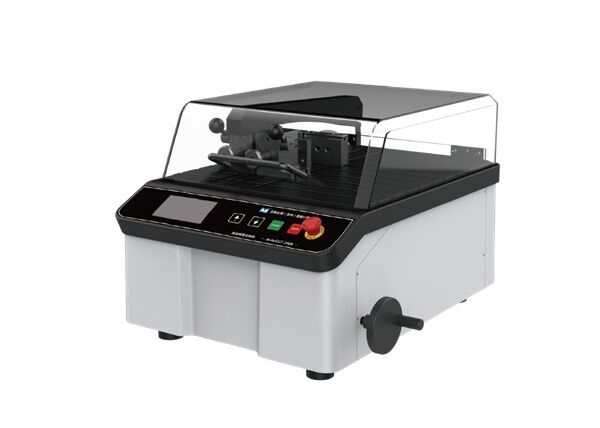

Automatic Precision Saw AutoCUT 200B Support Automatic and Manual Cutting
Brief Introduction:
The iqualitrol AutoCUT 200B is a tabletop precision sectioning saw with both automatic and manual cutting capabilities.
This is a versatile cutting machine designed for sectioning circuit boards and a variety of other sample cutting applications, such as metals, fasteners, rocks and ceramics, polymers, composites, electronics, semiconductors, biomaterials, etc.
Main Features:
1, Powerful DC motors with high torque; Variable speed and Max speed can be customized set;
2, Blade feed: Automatic/manual dual mode; Blade feed movement: linear or pulse;
3, Color touchscreen control panel, easy to use;
4, Magnetic safety switch. The blade can stop immediately once the cover is open;
5, Hard anodized aluminum table with T-slots. Easy to change the vises; Aluminum fast cam locking vises (left and right);
6, Composites support cover by integral molding, anti-rust;
7, Transparent top cover, easy to observe samples, Built-in wheel cooling.
Technical Specifications:
| Description | AutoCUT 200B |
| Blade Feed | Automatic/manual |
| Blade movement | Continuous, pulse |
| Blade | 200*12.7*0.8mm |
| Blade speed | 500-3000rpm, or customized |
| Table Dimensions | 368*424 (WxD, mm) |
| DC Motor | 600W |
| Power | 110/220V AC, 50-60Hz, 1 Phase |
| Accessories | |
| Diamond Blade | ● |
| Alumina Blade | ○ |
| SiC blade | ○ |
| Fast Cam Locking Vises | ● |
| Vertical Clamping vise | ○ |
| X-Feed Fixture | ○ |
| Cutting Vise in longitude direction for screws, bars, etc | ○ |
| Cutting Fluid | ○ |
●standard ○option
