| Model: | HRSS-150HY | Display: | Touch Screen |
|---|---|---|---|
| Force Loading: | Closed-loop Control Test Force | Data Output: | Built-in Printer |
| Vertical Space: | 220mm | Depth Throat: | 170mm |

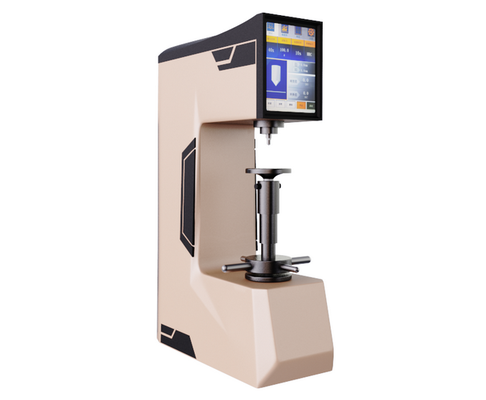

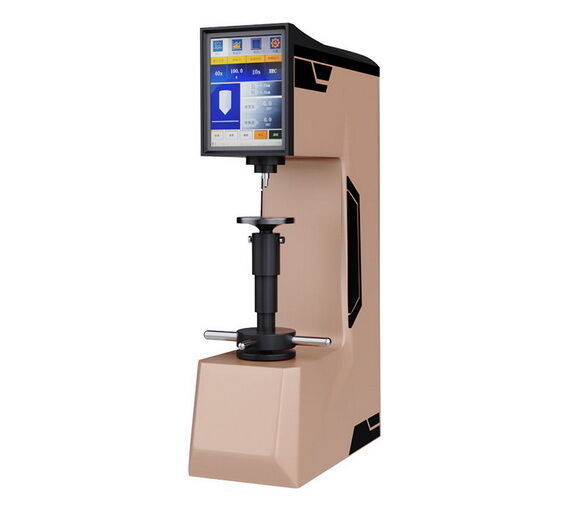

Full Rockwell Scales Hardness Tester HRSS-150HY with Touch Screen Controller
The iqualitrol HRSS-150HY Digital Rockwell Hardness Tester integrates Rockwell, superficial Rockwell, and plastic Rockwell measurements.
It features an 8-inch touch screen and a high-speed ARM processor, providing intuitive display, user-friendly interaction, and easy operation.
Brief Introduction:
1. High-quality cast iron body, formed in one casting, and treated with automotive paint for a smooth and aesthetically pleasing appearance.
2. Grating displacement sensor, displaying results on LCD screen, and allowing for the display and setting of test scales, test force, indenter type, holding time, unit conversion, etc.
3. Closed-loop control test force, fully realizing the automatic operation of force loading, holding, and unloading.
4. Built-in testing software allows for correction of hardness values.
5. Convenient control system that enables automatic unit conversion for all hardness scales.
6. Incorporates a built-in printer and data output via RS232, USB (optional) interface ports.
7. Accuracy complies with GB/T230.2, ISO 6508-2, and ASTM E18 standards.
Application Range:
1. Widely used for determining the Rockwell hardness of ferrous metals, non-ferrous metals, and non-metallic materials.
2. Used for measuring the hardness of plastics, composite materials, various friction materials, soft metals, non-metallic materials, etc.
Technical Specifications:
| Model | HRSS-150HY |
| Measurement Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y (a total of 30 different hardness scales) . |
| Measurement Range |
20-95HRA, 10-100HRBW, 20-70HRC; 70-94HR15N, 67-93HR15TW; 42-86HR30N, 29-82HR30TW; 20-77HR45N, 10-72HR45TW; 70-100HREW, 50-115HRLW; 50-115HRMW, 50-115HRRW; |
| Test Forces |
588.4N, 980.7N, 1471N (60kgf, 100kgf, 150kgf) 147.1N, 294.2N, 441.3N (15kgf, 30kgf, 45kgf) |
| Max Height | 220mm |
| Depth Throat | 170mm |
| Hardness Resolution | 0.1HR |
| Power Supply | AC 220V,50Hz |
| Dimensions | 520*230*800mm |
| Weight | 80kg |
Standard Configuration:
| Large Flat Workbench | One piece | Small Flat Workbench | One piece |
| V-shaped Workbench | One piece | Diamond Cone Indenter, φ1.588 Hard Alloy Ball Indenter | One of Each |
| Standard Surface Rockwell Hardness Test Block | Four Pieces | Standard Rockwell Hardness Blocks | Five pieces |
