| HRS-150T: | Regular Rockwell, 60kgf, 100kgf, 150kgf | HRS-45T: | Superficial Rockwell, 15kgf, 30kgf, 45kgf |
|---|---|---|---|
| XHRS-150T: | Plastics, Composite Materials, And Various Friction Materials | Display: | 8-inch Touch Screen Operation |
| Measure Sensor: | Grating Sensor With 0.1HR Precision | Test Space: | 200mm * 170mm |

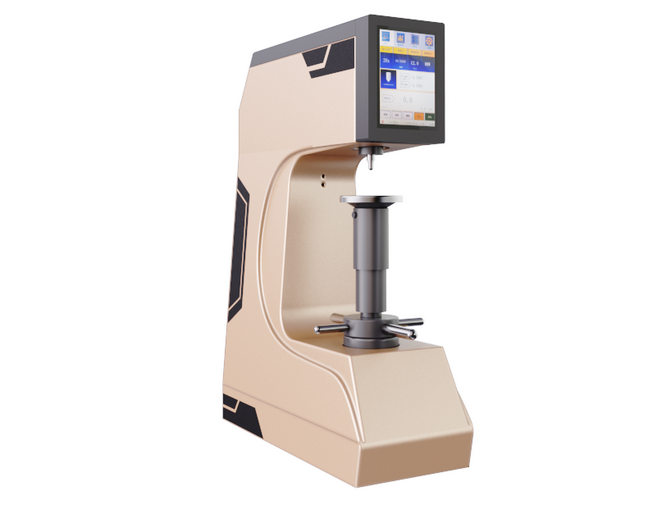

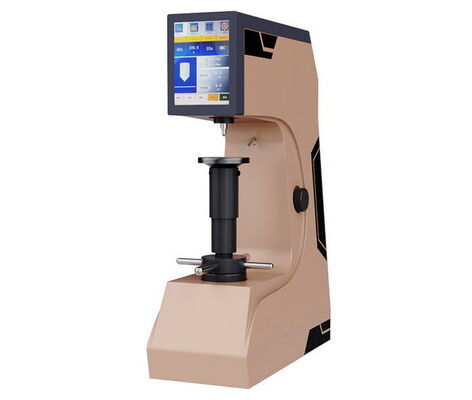

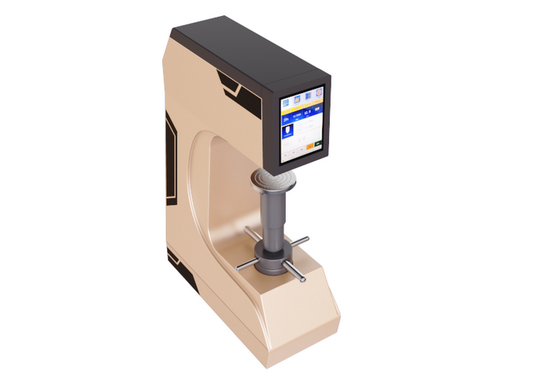

Touch Screen Digital Regular
Superficial Rockwell Hardness Tester HRS-150T, HRS-45T, XHRS-150T
Brief Introduction:
The iqualitrol Touch Screen Digital Rockwell Hardness Tester employs an 8-inch touch screen and a high-speed ARM processor, providing an intuitive display, user-friendly human-machine interaction, and easy operation.
It boasts fast computing speed, extensive database storage, automatic data correction, and provides data trend line charts.
1, 8-inch touch screen operation;
2, Automatic loading, dwell, and unloading;
3, Grating sensor with 0.1HR precision;
4, Database capable of storing 2000 sets of data.
Application Range:
Regular Rockwell
1, Measuring the Rockwell hardness of black metals, non-ferrous metals, and non-metallic materials.
2, Measuring the Rockwell hardness of heat-treated materials such as hard alloys, carburized steel, quenched steel, surface-quenched steel, hardened cast steel, aluminum alloys, copper alloys, forgings, mild steel, quenched and tempered steel, annealed steel, and bearings.
Surface Rockwell
1, Measuring the Rockwell hardness of surface-quenched steel, copper, aluminum alloy sheet, steel strip, hard alloy steel, galvanized, chromium-plated, and tin-plated materials.
2, Testing various metal materials undergoing surface heat treatment and chemical surface treatment.
Plastic Rockwell
1, Measuring the hardness of plastics, composite materials, and various friction materials.
2, Testing the hardness of soft metals and non-metallic soft materials.
Technical Specifications:
| Model | Regular Rockwell | HRS-150T |
| Superficial Rockwell | HRS-45T | |
| Plastic Rockwell | XHRS-150T | |
| Measurement Range | HRS-150T | 20-95HRA, 10-100HRBW, 20-70HRC; |
| HRS-45T | 70-94HR15N, 67-93HR15TW, 42-86HR30N, 29-82HR30TW, 20-77HR45N, 10-72HR45TW; |
|
| XHRS-150T | 70-100HREW, 50-115HRLW; 50-115HRMW, 50-115HRRW; |
|
| Test Forces | HRS-150T | 588.4N, 80.7N, 1471N (60kgf,100kgf,150kgf) |
| HRS-45T | 147.1N, 294.2N, 441.3N (15kgf,30kgf,45kgf) | |
| XHRS-150T | 588.4N, 980.7N, 1471N (60kgf,100kgf,150kgf) | |
| Loading Method | Automatic loading, holding, and unloading | |
| Variable Load Mode | Manual load variation | |
| Display Method | Touch Screen Display | |
| Dwell Time | 1-99 seconds | |
| Vertical space | 200mm | |
| Depth throat | 170mm | |
| Hardness Resolution | 0.1HR | |
| Power Supply | AC 220V,50Hz | |
| Dimensions | 510*290*730mm | |
| Weight | 80kg | |
Standard Accessories:
| HRS-150T | |||
| Large Flat Workbench | One piece | Small Flat Workbench | One piece |
| V-shaped Workbench | One piece | Diamond Cone Indenter | One piece |
| φ1.588 Hard Alloy Ball Indenter | One piece | Standard Rockwell Hardness Blocks | Five pieces |
| Printer | One unit | ||
| HRS-45T | |||
| Large Flat Workbench | One piece | Small Flat Workbench | One piece |
| V-shaped Workbench | One piece | Diamond Cone Indenter | One piece |
| φ1.588 Hard Alloy Ball Indenter | One piece | Standard Surface Rockwell Hardness Test Block | Four Pieces |
| Printer | One unit | ||
| XHRS-150T | |||
| Large Flat Workbench | One piece | Small Flat Workbench | One piece |
| V-shaped Workbench | One piece | Φ3.175,6.35,12.7mm Hard Alloy Ball Indenters |
One of Each |
| Φ3.175,6.35,12.7mm Hard Alloy Ball Indenters |
One of Each | Standard Plastic Rockwell Hardness Test Blocks | Four Pieces |
| Printer | One unit | ||
