| HRS-150AT: | Regular Rockwell, Force 60kgf, 100kgf, 150kgf | HRS-45AT: | Superficial Rockwell, Force 15kgf, 30kgf, 45kgf |
|---|---|---|---|
| Force Switch: | Automatic Loading Switch System | Test Standards: | ISO 6508-2, And ASTM E18 Standards |
| Illumination: | Lighting Lamp For User Convenience In Poor Lighting Condition | Data Output: | Wireless Bluetooth Printer, RS232 |

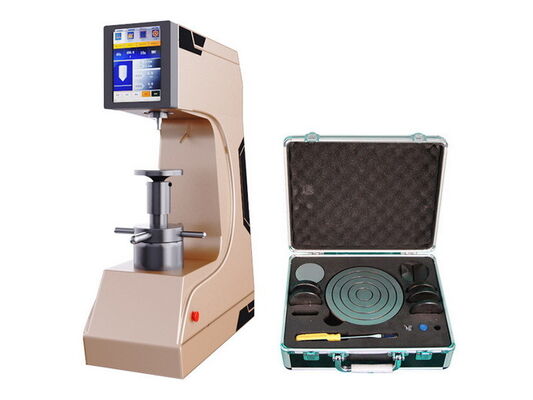

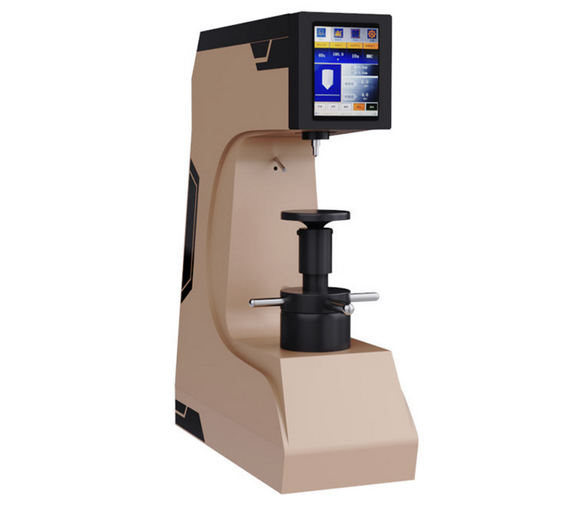

Rockwell Hardness Tester Touch
Screen Automatic Loading Switch HRS-150AT,HRS-45AT, XHRS-150AT
Main Features:
1. Equipped with an automatic loading switch system, it can achieve one-touch force switch, fundamentally solving the problem of abnormal testing caused by users selecting incorrect force values, making it convenient for users and eliminating operational hazards.
2. Built-in initial test force protection device ensures precise control of the initial test force, preventing operational errors when the user rotates the screw handwheel, and the workpiece head approaches the correct height.
3. With temperature measurement function, digital temperature measurement circuit ensures long-term stable and reliable operation.
4. Maximum and minimum hardness values can be set, and an alarm sounds if the test value exceeds the set range.
5. The unit has a database function that automatically classify and saves test data, with each group capable of storing more than 10 sets of data, totaling over 2000 sets of data.
Technical Specifications:
| Model | Regular Rockwell | HRS-150AT |
| Superficial Rockwell | HRS-45AT | |
| Plastic Rockwell | XHRS-150AT | |
| Measurement Range | HRS-150AT | 20-95HRA,10-100HRBW,20-70HRC; |
| HRS-45AT |
70-94HR15N,67-93HR15TW, 42-86HR30N,29-82HR30TW, 20-77HR45N,10-72HR45TW; |
|
| XHRS-150AT |
70-100HREW,50-115HRLW; 50-115HRMW,50-115HRRW; |
|
| Test Forces | HRS-150AT | 588.4N,980.7N,1471N(60kgf,100kgf,150kgf); |
| HRS-45AT | 147.1N,294.2N,441.3N(15kgf,30kgf,45kgf); | |
| XHRS-150AT | 588.4N,980.7N,1471N(60kgf,100kgf,150kgf); | |
| Loading Control | Automatic loading, dwell, and unloading | |
| Display Method | Touch Screen Display | |
| Dwell Time | 1-99s | |
| Vertical Space | 200mm | |
| Depth Throat | 170mm | |
| Hardness Resolution | 0.1HR | |
| Power Supply | AC 220V, 50Hz | |
| Dimensions | 510*290*730mm | |
| Weight | 80kg | |
