|Data Output:||Built-in Printer And RS232||Dwell Time:||0 - 60 Seconds, Adjustable|
|Height:||Max Specimen Height 175mm||Throat:||Max Horizontal Space 165mm|
|Hardness:||Resolution 0.1HR, 1HV||Conversion:||Support HV, HK, HBW|
digital rockwell hardness tester,
hardness testing instruments

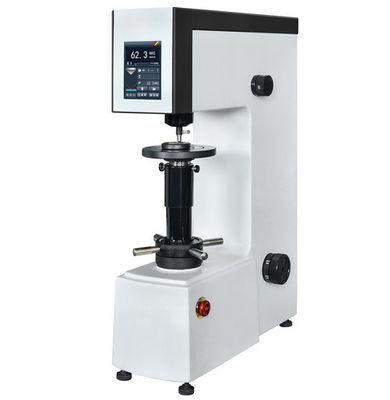

Built-in Printer RS232 Full Rockwell Scales Digital Hardness Testing Machine with Motorized Loading
iqualitrol iRock-438T Digital Twin Rockwell hardness tester equips with a newly-designed large LCD screen with good reliability, excellent operation and easy reading, It can show and set the scale, test force, indenter, dwell time and hardness conversion.
Main function as follows:
1, Available to test all the Rockwell and superficial Rockwell scales;
2, Support hardness conversion among 17 hardness scales;
3, Test results can be saved and printed out,
4, Automatically calculate of maximum, minimum and average value;
5, RS232 interface for data transferring to computer.
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
|Initial Test Force||3kgf (29.42N), 10kgf (98.07N)|
|Total Test Force||
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),
|Indenter||Diamond Rockwell Indenter, ф1.588mmBall Indenter|
|Loading Method||Automatic (Loading/Dwell/Unloading)|
|Hardness Reading||LCD Screen Display|
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
|Conversion Scale||HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW|
|Data Output||Built-in Printer, RS232 Interface|
|Power Supply||AC220V/50Hz/1Ph, AC110V/60Hz/1Ph|
|Execute Standard||ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2|
|Dimension||520×215×740mm, Packing Dimension: 650×370×980mm|
|Weight||Net Weight: 80kg, Gross Weight: 100kg|
|Instrument Main Body||1 set||Diamond Rockwell Indenter||1 pc|
|ф1.588mmBall Indenter||1 pc||Middle Plane Test Table||1 pc|
|Large Plane Test Table||1 pc||V-shaped Test Table||1 pc|
|Hardness Block 60~70 HRC||1 pc||Hardness Block 20~30 HRC||1 pc|
|Hardness Block 80~100 HRB||1 pc||Hardness Block70~85 HR30T||1 pc|
|Hardness Block 65~80 HR30N||1 pc||Weight 1, 2, 3, 4, 5||5 pcs|
|Power Cable||1 pc||Fuse 2A||2 pcs|
|Level||1 pc||Horizontal Regulating Screw||4 pcs|
|Screw Driver||1 pc||Spanner||1 pc|
|Anti-dust Cover||1 pc||Usage Instruction Manual||1 copy|
The Rockwell test consists of measuring the additional depth to which a carbide ball or diamond penetrator is forced by a heavy (major) load beyond the depth of a previously applied light (minor) load (SET point).
The minor load is applied first and a SET position is established on the dial gauge or displacement sensor of the Rockwell tester. Then the major load is applied. Without moving the piece being tested, the major load is removed and, with the minor load still applied, the Rockwell hardness number is automatically indicated on the dial gauge or digital display.
The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.
Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales) and Rockwell superficial testing (e.g., 30 N and 30 T scales).
High Rockwell hardness numbers represent hard materials and low numbers soft materials.
