|Cutting Section:||Diameter 65mm For Cylinder Samples||Rotation Speed:||2800rpm|
|Cutting Wheel:||250 X 1.5 X 32mm||Motor:||1.2kW, AC380V/50Hz/3Ph|
|Cooling:||Water Cooling||Application:||To Cut Irregular Samples|
precision cutting machine,
specimen cutting machine

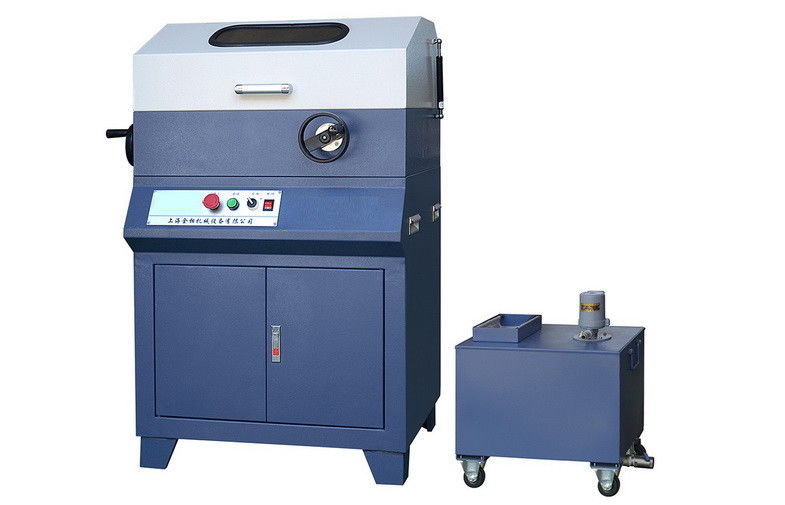

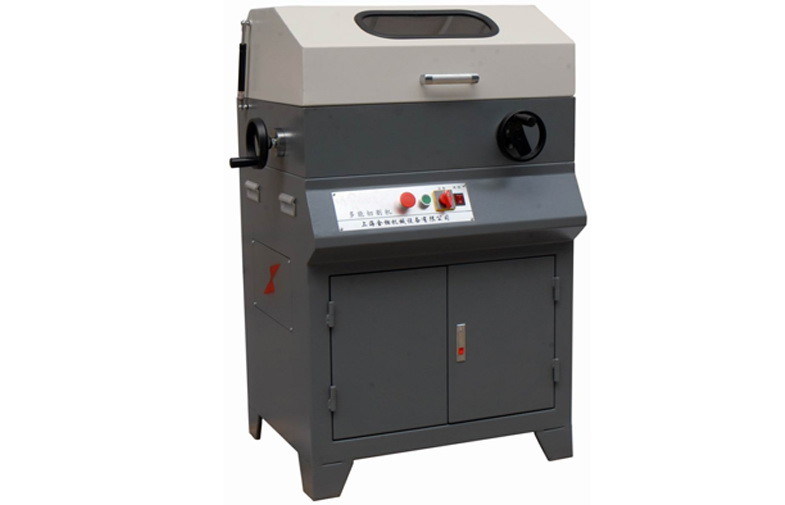

Quick Clamp Device Multifunctional Manual Metallographic Cutting Machine with Water Cooling
iqualitrol iCut-405 multifunctional cutting machine mainly used to cut irregular metallographic sample materials such as round cylinder and polygon and protruding platforms, etc.
iqualitrol iCut-405 adopts double-shell totally closed structure and quick clamp device, can guarantee cutting under absolutely safe status.
Sample thickness can be changed arbitrarily, and the speed of entering is controllable.
In order to avoid sample organization burns during cutting, iqualitrol iCut-405 comes with strong cooling system, can avoid even little burn of the sample surface while cutting and falling.
The machine has advantages in operation and maintenance; it is the extremely good apparatus for cutting irregular sample materials.
Diameter 65mm for cylinder samples
65*100mm for cube samples
|Cutting Wheel||250 x 1.5 x 32mm|
|Dimension||700 x 520 x 1110mm|
Operation of Cutting Machine:
When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.
One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.
Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
Contact Person: Mr. Raymond Chung
Cutting Disc: can be used with Ф300mm and Ф350mm cutting blades
Motor: high-power motor (5.5Kw) to make the cutting more powerful and labor-saving
Application: cutting of the specimens of various shapes, sizes, and complex materials
push-up safety door: putting samples into the cutting chamber easy and fast
