|Cutting Mode:||Automatic And Manual||Speed:||Rotation Speed 500-2800rpm|
|Feed Motor:||Servo Motor||Feed Speed:||3-12mm/min, Adjustable|
|Cut Ways:||Swing Cutting And Continuous Cutting||Cooling:||Water Tank 120L|
specimen cutting machine,
abrasive cutting machine,
PLC controlled metallographic sample cutting machine

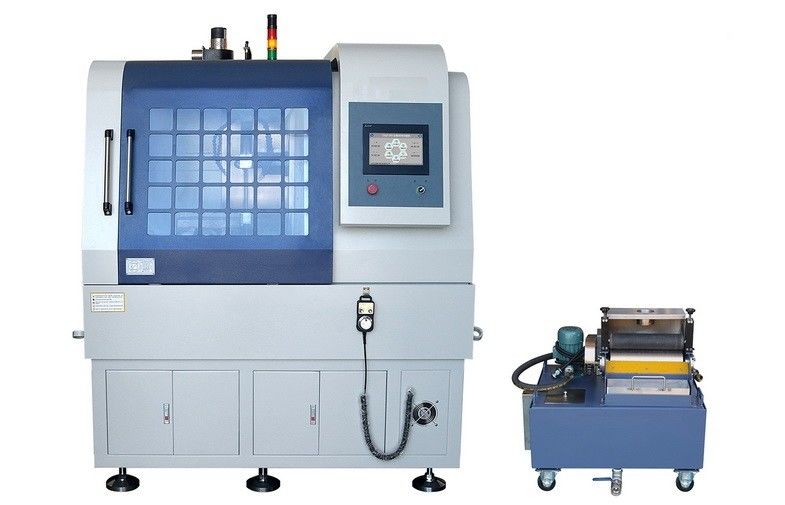

Automatic Large Capacity Metallographic Sample Cutting Machine Max Cut Section 300x150 mm
The machine is a PLC controlled automatic metallographic sample cutting machine, X/Y/Z directions controlled automatically and precisely, intelligent cutting, the amount of feed can change depending on the material’s hardness, to achieve the fastest cutting effect. Cutting speed frequency conversion control, has very high reliability and control ability.
In order to facilitate cutting room cleaning and security of the spindle motor, the machine adopts electro-mechanical dissociation.
There is a large observation window on the cutting room security cover, makes the user easy to observe the entire process of cutting samples.
Installed LED lights in the cutting room, it achieves effective lighting for the entire area of the cutting room.
Cutting indoor ventilation fan can ensure the efficient flow discharge of various steam and smoke caused by the cutting and increases the indoor brightness and clarity.
The design is more humane and adopts the principle of ergonomics. The most important feature: Low noise, easy to operate, beautiful appearance, safety use. It is one of the best equipment for laboratory sample preparation.
The body form: vertical. Mainly composed of upper (safety cover), middle (frame), right sliding door, side door, the lower frame (electrical box, tool box), fixture, rinsing tap, cooling water tank (independent).
It adopts frequency conversion motor, direct cutting disc, stepless speed regulation, concise design and solid structure. The direct driving provides the transmission between the motor and the cutting disc, and ensure the high efficiency, low noise, minimum maintenance and longer service life.
Design of special cutting for large workpieces, it makes the maintenance of machine parts and processing of large workpieces easier. Sliding door and hinged door makes you have more space and unlimited access, more convenient for you to place the large workpiece in the right position. You can put the workpiece into the cutting room from three directions (up, front and left).
The work area adopts fully enclosed structure and a transparent protective cover for the observation of cutting. Equipped with a cooling water tank for storing cooling liquid, do avoid using tap water as cooling liquid. After the cutting work is finished, use the left rinsing tap to rinse the indoor garbage and then close the safety door.
|Control method||Manual / Automatic, three axis linkage, 10 inch touch screen control, Can be switched to the operating handle wheel|
|Feature||Automatic drain system, alarm system, double LED lighting, red cursor position|
|Feeding speed||3mm/min, 5mm/min, 8mm/min, 12mm/min (users may modify the set speed according to requirement)|
|Ø380xØ32x2 mm||Ø400xØ32x3 mm||Ø400xØ32x3 mm|
|Work table dimension (X*Y)||450x350 mm||485x400 mm||530x630 mm|
|Y axis maximum travel distance||250 mm||300 mm||420 mm|
|X axis maximum travel distance||100 mm||100 mm||110 mm|
|Z axis maximum travel distance||160 mm||230 mm||230 mm|
|Max. cutting cross section||120x100 mm||200x120 mm||300x150 mm|
|Fixture caliber||120 mm||200mm||300 mm|
|Frequency conversion motor||5.5kw, Speed: 500-2800 r/min||7.5kw, Speed: 500-2800 r/min||7.5kw, Speed: 500-2800 r/min|
|Feeding motor||Servo motor||Servo motor||Servo motor|
|Volume of the water tank||120L||120L||120L|
