| Feed Speed: | 0-1.5mm/s | Rotate Speed: | 1950rpm |
|---|---|---|---|
| Cutting Disc: | Φ200 X 1 X 32mm | Motor: | 1.8KW |
| Highlight: | specimen cutting machine,abrasive cutting machine |
||

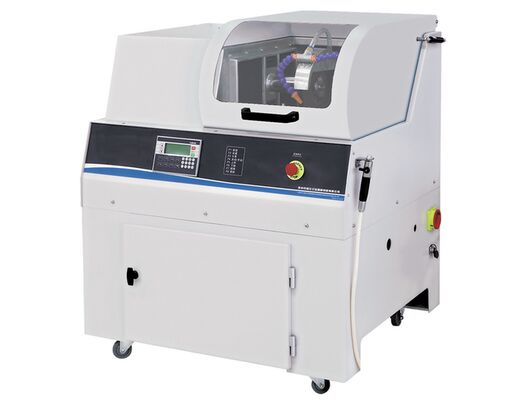

Automatic Precision Sample
Abrasive Cutting Machine iCut-865 with Cooling System
Download Technical Data: iqualitrol Cutting Machine iCut-865
Brief Introduction:
The iqualitrol iCut-865 precision cutting machine is designed for precise, deformation-free cutting of a wide range of materials, including metals, electronic components, ceramic materials, crystals, cemented carbides, rock and mineral samples, concrete, organic materials, and biological materials such as teeth and bone.
iCut-865 features high positioning accuracy, an extensive speed-adjustment range, powerful cutting capability, a robust recirculating cooling system, preset feed rates, menu-based control, an LCD display, and user-friendly operation.
Its automatic cutting function reduces operator fatigue and ensures consistent sample preparation, while the spacious, well-lit cutting chamber equipped with a safety interlock further enhances operational safety.
The adjustable vertical travel of the grinding wheel allows for continued cutting even after wear, making this machine an ideal choice for industrial and mining enterprises as well as research institutes seeking to produce high-quality test specimens.
Technical Specifications:
| Feed rate | 0–1.50mm/s (adjustment step: 0.01) |
| Grinding wheel speed | 1950rpm |
| Maximum travel distance | Z-axis: 50 mm; Y-axis: 200 mm; X-axis (manual): 50 mm |
| Cutting disc size | 250×1.5×32mm |
| Cutting power | 1.5kW |
| Input Power | 1.8kW |
| Maximum Cutting Capacity | Φ80mm |
| Power supply | AC380V/50Hz |
| External dimensions | 1000×1035×1200 mm (length × width × height) |
| Weight | 210Kg |
