Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter

China Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter supplier
Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter supplier Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter supplier

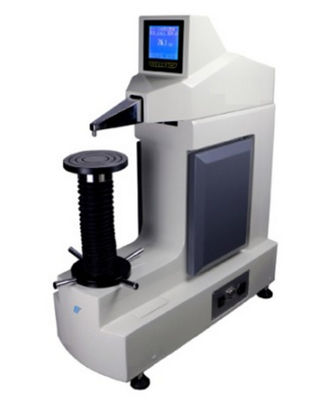

Large Image :  Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iRock-150N

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 50 Sets per Month
Detailed Product Description
Memory: To Save 400 Results Data Transfer: By RS232
Vertical Space: 260mm Horizontal: 150mm
Resolution: 0.1HR Dwell Time: 0 - 60 Seconds, Adjustable
High Light:

rockwell hardness test equipment

,

digital rockwell hardness tester



LCD Metal Material Rockwell Hardness Testing Machine Hardness Testing for Tube Inner Wall



Features:

● Horizontal Protrudent Indenter Design, suitable for internal and external testing;


● Testing surfaces difficult to reach by normal Rockwell testers, internal surface of rings and tubes with diameters over 23mm;


● Testing force was set automatically according to testing scale;


● Measuring results displays on LCD and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port;


● Test value can be transformed to the value of HB, HV, HK and σb value;


● Conform standards ISO 6508-2, ASTM E18.



Application:
1, Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

2, Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

3, Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.

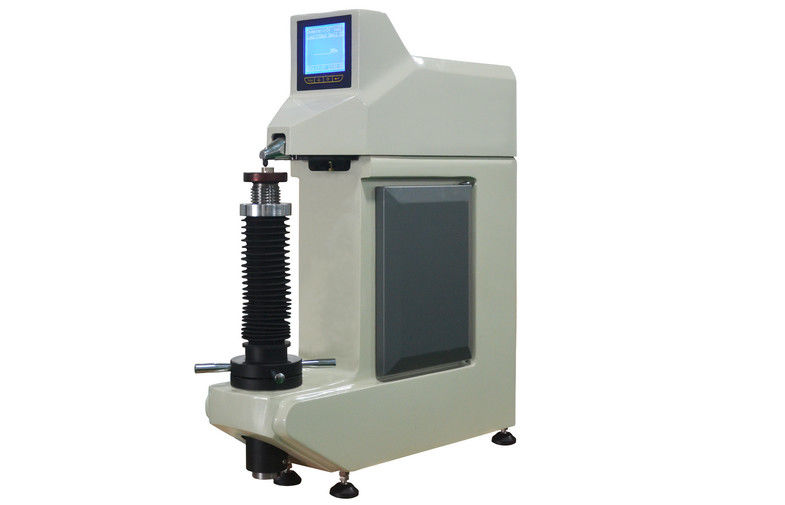

Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter 0



Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter 1



Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter 2


Specifications:

Product Name Rockwell Hardness Tester
Model iRock-150N
Total test force 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)
Rockwell Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Memory Max 400 items of test results stored automatically
Dwell Time Adjustable 2-50s
Hardness Indication High definition backlight LCD
Resolution 0.1HR
Data-Output RS-232
Loading Control Auto Loading/Dwell/Unloading
Hardness Conversion HRC,HRB,HRA,HV,HK,HBW,etc
Max. Height Of Specimen 260mm
Instrument Throat 150mm
Dimension 710 x 210 x 830mm
Packing Dimension 820 x 520 x 1000mm
Power supply AC220V/50Hz; AC110V/60Hz
Gross/Net Weight 125Kg/95Kg
Execution Standard GB/T230.2, JJS Z2245, EN-ISO 6508 , ASTM E-18



Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter 3


Standard Delivery:

Instrument Main Body Ø1.588mm Ball Indenter Weight 1
Cone diamond Indenter Ø1.588mm Steel Ball Weight2
Hardness Block HRA Screwdriver for indenter mounting Weight 3
Hardness Block HRB Power Cable Weight 4
Hardness Block HRC Ø 40mm V-shape Anvil Anti-dust Cover
Accessories Box Ø 60mm Flat Anvil Instrument Manual





Automatic Loading Digital Rockwell Hardness Testing with Horizontal Protrudent Indenter 4
