Product Details:
Payment & Shipping Terms:
|
| Rotation Speed: | 2800rpm | Section: | Max Diameter 60mm |
|---|---|---|---|
| Motor: | 2.4KW | Power Supply: | AC380V/50HZ/3Ph |
| Application: | Various Metal, Non Metal Materials | Cooling Device: | Water Cooling To Avoid Overheating |
| Highlight: | precision cutting machine,specimen cutting machine |
||

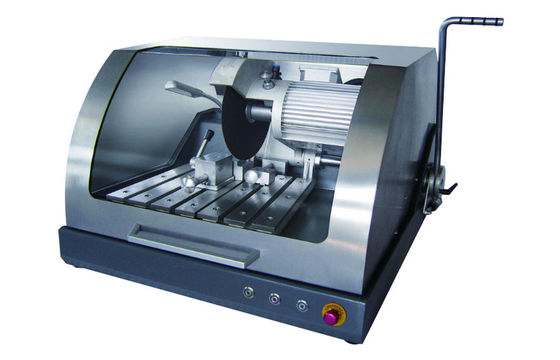

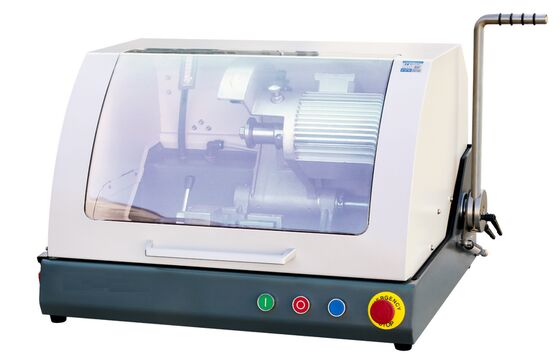

Cutting Section 60mm Manual
Type Abrasive Cutter for Long Specimens with Cooling Tank
Download Technical Data: iqualitrol Cutting Machine iCut-852
Brief Introduction:
The iqualitrol iCut-852 is a basic metallographic specimen cutting machine designed for cutting both metallic and non-metallic materials.
It is primarily used for cutting various workpieces to meet the requirements of metallographic and petrographic microstructural analysis.
iqualitrol iCut-852 was equipped with a dedicated cooling system that effectively dissipates cutting heat, preventing overheating and thermal damage to the specimens.
It features simple operation, high safety and reliability, a well-structured design, and strong practicality.
Although it employs manual control rather than CNC cutting, its rational layout and robust safety mechanisms make it an economical and highly practical solution for routine specimen cutting in industrial plants, research institutions, and laboratory settings at colleges and universities.
Technical Specifications:
| Power supply | Three-phase four-wire (AC380V, 50Hz) |
| Spindle speed | 2,800 rpm |
| Grinding Wheel Specifications | 250×1.5×25.4mm |
| Maximum cutting pass diameter | Φ60mm |
| Input Power | 2.4kW |
| Cutting power | 2.2kW |
| External dimensions | 760*620*450mm |
| Weight | 82Kg |
