Display: | Touch Screen Controller | Data Output: | Built-in Printer, RS232 Interface |
---|---|---|---|
Max Height: | Rockwell: 170mm, Brinell & Vickers: 145mm | Throat: | Horizontal Space 165mm |
Hardness: | Automatic Reading | Test Force: | From 30kgf To 187.5kgf |
High Light: | Vickers And Rockwell Hardness Testing Machine,Rockwell Hardness Testing Machine 165mm |

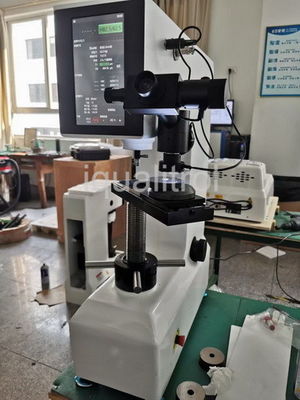

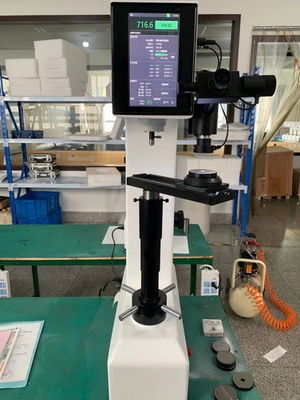

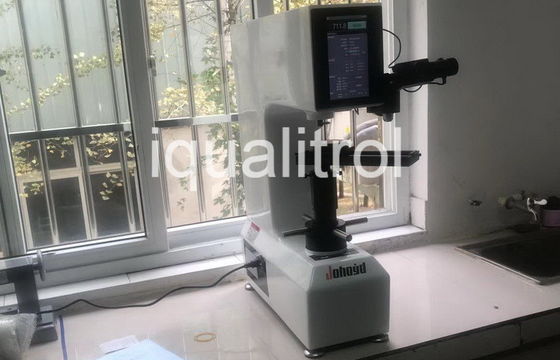

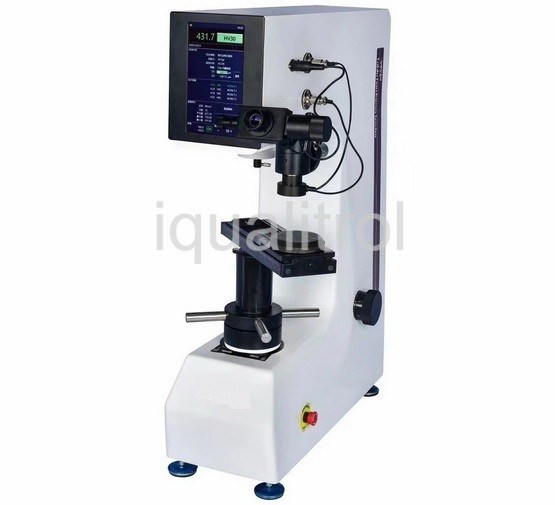

Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller
Technical Data Download: iqualitrol Universal Rockwell Brinell Vickers Hardness Tester iUniv-187.5DT
Product Profile:
The iqualitrol touch screen digital universal hardness tester has novel appearance, complete functions, convenient operation, clear and intuitive display and stable performance.
It can perform Brinell, Rockwell and Vickers hardness test, equips with 23-level measuring scales, which can meet a variety of hardness testing needs. It has the characteristics of high accuracy, simple operation, high sensitivity, convenient use and stable value.
Equipped with a built-in printer, and an optional RS232 data line can be connected to a computer via hyper terminal, or U disk to export measurement reports.
iqualitrol iUniv-187.5DT Touch Screen Controller Digital Brinell Rockwell & Vickers hardness tester equips with a newly-designed large displaying screen with good reliability, excellent operation and easy reading.
It has Brinell, Rockwell and Vickers three test modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell, unload adopts automatic shifting for easy and fast operation.
It can show and set the present scale, test force, test indenter, dwell time and hardness conversion.
The main functions as follows:
1, Support Brinell, Rockwell and Vickers three test modes;
2, Support hardness Conversion scales of different kinds of hardness;
3, Test results can be saved for reviewing or be printed out,
4, Data statistics automatically calculate of maximum, minimum and average value;
5, With RS232 interface for connecting to the computer.
Application range:
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
Technical Specification:
Model | iUniv-187.5DT |
Rockwell Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
Brinell Test Force | 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N) |
Vickers Test Force | 30kgf (294.2N), 100kgf (980.7N) |
Indenter |
Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mmBall Indenter |
Loading Method | Automatic (Loading/Dwell/Unloading) |
Hardness Reading | Touch Screen Display |
Test Scale | HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100 |
Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
Magnification | Brinell: 37.5×, Vickers: 75× |
Resolution | Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm |
Dwell Time | 0~60s |
Data Output | Built-in Printer, RS232 Interface |
Max. Height of Specimen | Rockwell: 170mm, Brinell: 145mm, Vickers: 145mm |
Throat | 165mm |
Power Supply | AC220V/50Hz1Ph, AC110V/60Hz/1Ph |
Execute Standard |
ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
Dimension | 550×210×720mm, Packing Dimension: 650×370×980mm |
Weight | Net Weight: 85kg, Gross Weight: 115kg |
Packing List:
Name | Qty | Name | Qty |
Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
Diamond Vickers Indenter | 1 pc | ф1.588mm, ф2.5mm, ф5mmBall Indenter | each 1 pc |
Slipped Test Table | 1 pc | Middle Plane Test Table | 1 pc |
Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
15× Digital Measuring Eyepiece | 1 pc | 2.5×, 5× Objective | each 1 pc |
Microscope System (include the inside light and outside light) | 1 set | Hardness Block 150~250 HBW 2.5/187.5 | 1 pc |
Hardness Block 60~70 HRC | 1 pc | Hardness Block 20~30 HRC | 1 pc |
Hardness Block 80~100 HRB | 1 pc | Hardness Block 700~800 HV30 | 1 pc |
Weights 0, 1, 2, 3, 4 | 5 pcs | Power Cable | 1 pc |
Fuse 2A | 2 pcs | Horizontal Regulating Screw | 4 pcs |
Level | 1 pc | Spanner | 1 pc |
Screw Driver | 1 pc | Anti-dust Cover | 1 pc |
Usage Instruction Manual | 1 copy |
