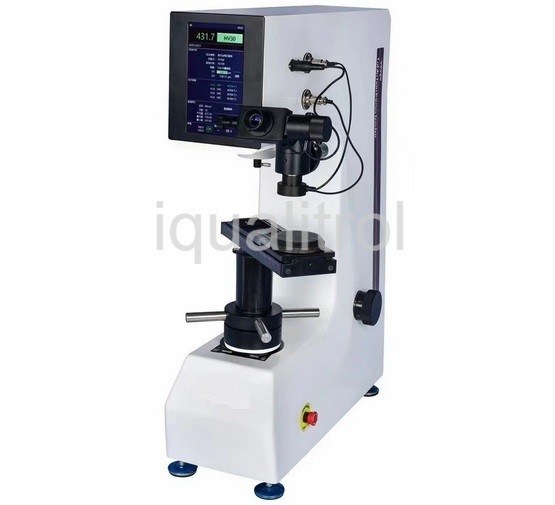

Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller

Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller
Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller

Large Image :  Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iUniv-187.5DT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: T/T
Supply Ability: 50 Sets per Month
Detailed Product Description
Display: Touch Screen Controller Data Output: Built-in Printer, RS232 Interface
Max Height: Rockwell: 170mm, Brinell & Vickers: 145mm Throat: Horizontal Space 165mm
Hardness: Automatic Reading Test Force: From 30kgf To 187.5kgf
High Light:

Vickers And Rockwell Hardness Testing Machine

,

Rockwell Hardness Testing Machine 165mm



Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller



Technical Data Download: iqualitrol Universal Rockwell Brinell Vickers Hardness Tester iUniv-187.5DT



Product Profile:

The iqualitrol touch screen digital universal hardness tester has novel appearance, complete functions, convenient operation, clear and intuitive display and stable performance.



It can perform Brinell, Rockwell and Vickers hardness test, equips with 23-level measuring scales, which can meet a variety of hardness testing needs. It has the characteristics of high accuracy, simple operation, high sensitivity, convenient use and stable value.



Equipped with a built-in printer, and an optional RS232 data line can be connected to a computer via hyper terminal, or U disk to export measurement reports.



iqualitrol iUniv-187.5DT Touch Screen Controller Digital Brinell Rockwell & Vickers hardness tester equips with a newly-designed large displaying screen with good reliability, excellent operation and easy reading.



It has Brinell, Rockwell and Vickers three test modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell, unload adopts automatic shifting for easy and fast operation.

It can show and set the present scale, test force, test indenter, dwell time and hardness conversion.



The main functions as follows:

1, Support Brinell, Rockwell and Vickers three test modes;

2, Support hardness Conversion scales of different kinds of hardness;

3, Test results can be saved for reviewing or be printed out,

4, Data statistics automatically calculate of maximum, minimum and average value;

5, With RS232 interface for connecting to the computer.



Application range:

Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.



Technical Specification:

Model iUniv-187.5DT
Rockwell Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force 30kgf (294.2N), 100kgf (980.7N)
Indenter

Diamond Rockwell Indenter, Diamond Vickers Indenter,

ф1.588mm, ф2.5mm, ф5mmBall Indenter

Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading Touch Screen Display
Test Scale HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Magnification Brinell: 37.5×, Vickers: 75×
Resolution Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm
Dwell Time 0~60s
Data Output Built-in Printer, RS232 Interface
Max. Height of Specimen Rockwell: 170mm, Brinell: 145mm, Vickers: 145mm
Throat 165mm
Power Supply AC220V/50Hz1Ph, AC110V/60Hz/1Ph
Execute Standard

ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2

ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2

ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Dimension 550×210×720mm, Packing Dimension: 650×370×980mm
Weight Net Weight: 85kg, Gross Weight: 115kg



Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller 0

Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
Diamond Vickers Indenter 1 pc ф1.588mm, ф2.5mm, ф5mmBall Indenter each 1 pc
Slipped Test Table 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
15× Digital Measuring Eyepiece 1 pc 2.5×, 5× Objective each 1 pc
Microscope System (include the inside light and outside light) 1 set Hardness Block 150~250 HBW 2.5/187.5 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Hardness Block 700~800 HV30 1 pc
Weights 0, 1, 2, 3, 4 5 pcs Power Cable 1 pc
Fuse 2A 2 pcs Horizontal Regulating Screw 4 pcs
Level 1 pc Spanner 1 pc
Screw Driver 1 pc Anti-dust Cover 1 pc
Usage Instruction Manual 1 copy



Built-in Printer Universal Rockwell Brinell Vickers Hardness Testing Machine with Touch Controller 1
