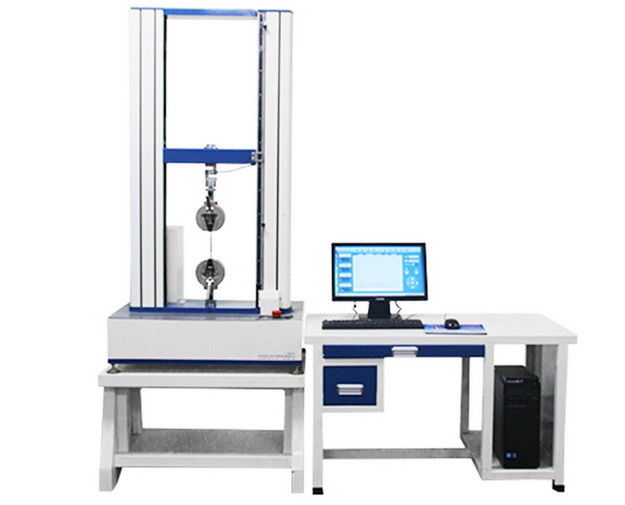

100KN Computerized Universal Material Testing Machine For Tensile Compression Bending

Computerized 100KN Universal Material Testing Machine for Tensile, Compression, Bending Testing

Brief Profile:

iqualitrol iUTM-1100-100 computer-controlled electronic universal testing machine is designed for universities, research institutes and design a new generation of computer-controlled electronic universal testing machine.

Computer system through the all-digital controller and servo motor rotation speed control system, the deceleration gear system by precision ball screw drive after moving beam up, down, complete specimen tensile, compression, bending, shear and other kinds of mechanical performance test, another test accompanied by a wide variety of configurations, in metal, nonmetal, compound materials and products in the mechanical performance test, has a very broad application prospects.

Universal testing machine is widely used in building materials, aerospace, machinery, wire and cable, rubber, plastics, textiles, household appliances and other industries of the material tests and analysis, scientific research institutions, universities, industrial and mining enterprises, technical supervision, inspection and arbitration departments ideal test equipment.

Technical Specification :

3, the program description

3.1 Host

1.1 host portal frame structure with high stiffness, high strength, small deformation;

1.2 The use of imported high-precision ball screw drive efficient and smooth;

1.3 Transmission arc tooth synchronous belt drive, two-way transmission process gap;

1.4 AC servo motor and drive system ensure smooth transmission, torque stability, with overcurrent, overvoltage, overload protection device, the governor than 1:100,000;

1.5 fixture specially designed clamping firm, easy to operate, no jaws slip phenomenon;
The 1.6 special process assurance testing machine concentricity well eliminate the irregular sample sensor.

3.2 control system

The STC300 full digital control closed loop system has many advanced features and technological innovation, mainly reflected in:

(1) test force specimen deformation, four closed-loop control the crosshead and test process;

(2) the data acquisition system by the 4-way high-precision 24 A / D conversion channel composed. The maximum resolution of up to 1/300000, full, regardless of the file;

(3) the choice of the original brand BB, AD, Xilinx, integrated devices, all-digital design;

(4) in line with the PCI bus standard, the microcomputer automatic identification and installation, do the "plug and measure";

(5) electronic measuring systems potentiometer and other analog components to ensure interchangeability for easy maintenance and replacement.

4, Control software:

Comply with GB228-87, GB228-2002 standard and other relevant provisions of more than thirty countries, while according to GB, ISO, JIS, ASTM, DIN, and provide a variety of standard tests and data processing, and has good scalability.

4.1, Computer control system, high integration, performance, stability, and easy to adjust.

Experimental data can be collected in real time, real-time characteristic curve of the experimental

dynamic display, test data files can be used with Access databases or SQLserve way to save a

large database to facilitate the sharing of resources to achieve customer and network

management, and user re-analysis. For a variety of word2000 user-defined reports, the software

can easily access to solve the same user or different users at different times have different needs

for the test reports of problems. The software can handle test force, displacement, time derivative

of the original data and the resulting curve;

4.2, Protection: This machine has two kinds of software and mechanical limit protection, automatic

shut down more than the maximum load ratio can be dynamically set; with over-current, over

voltage and overload protection features;

4.3, channels for load automatically marked, easy and intuitive;

4.4, volume curve of the test can be achieved at different levels show that automatically follow the

curve;

4.5, The software enables user-defined speed set, adjust the speed of the computer. Can achieve high-precision calibration of the speed at any time to adjust speed gear and coding;

4.6, Monitoring the testing process: the process of testing the test force, displacement, curve and

other parameters to achieve real-time display;

4.7, Classification authority management software: In order to improve the software and data security,

which you can set password protection to achieve the different sub-rights management

functions;

4.8, The results reproduce the features: the coexistence of test operation is complete after-hours,

according to user needs at any time in the future to open and re-analysis of test data;

4.9, Ccan be selected according to the user load ~ time, the load - displacement, displacement - time

curve for test and data display, storage, analysis and printing;

4.10, By-point through the curve function: by clicking the mouse on the curve, force and deformation

values ​​at each point in order to achieve a variety of parameters;

4.11, The results contrast features: multiple tests can be also observed curves, and the superposition

of multiple curves, enlarged to achieve the characteristics of samples to be analyzed than;

4.12, power interface: power channel interface and test the software according to user needs with a

variety of sensors, and can be calibrated, to modify parameters and normal test;

4.13, Data sampling frequency: the user can choose high-speed sampling frequency test

Requirements.

5, the basic system configuration
1, the test machine host (portal frame structure)
1.1 AC servo motor and servo drive (Taiwan company TECO product )
1.2 high-precision load sensor (Spoke)
1.3 Import precision ball screw (Korea company Too King product: )
1.4 Deceleration System (Arc tooth synchronous belt)
2, STC300 dual-channel programmable amplifier Resolution 1 / 300 000
3, SMARTTEST dedicated control software
4, extensometer (China North Steel Institute YYU50/10)
5, the optical encoder (2000 lines)
6, accompanied by a full set including: tensile, compression, bending accompanied
7, the Lenovo computer
8, HP inkjet printer A4
9, the technical data: manual, software manual, certificate, packing list
