| Capacity: | Max 200KN | Force: | Accuracy ±1% |
|---|---|---|---|
| Resolution: | Force 1/300 000 | Test Speed: | 0.01-500mm/min |
| Speed Control: | Accuracy ±1% (0.01 10mm/min) | Test Space: | Max 700mm |
| High Light: | Electronic Universal Material Testing Machine,Universal Material Testing Machine 200KN,Universal Material Tester 200KN |
||

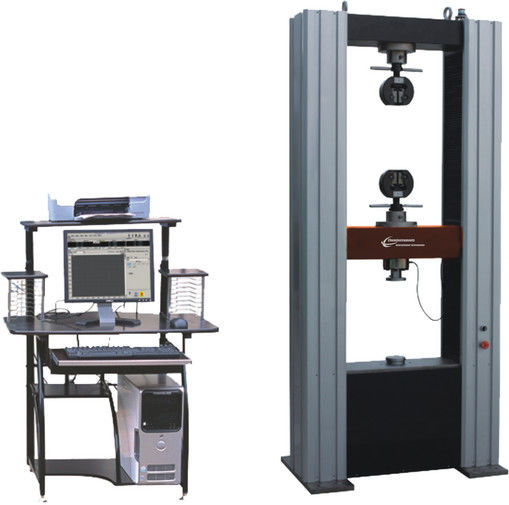

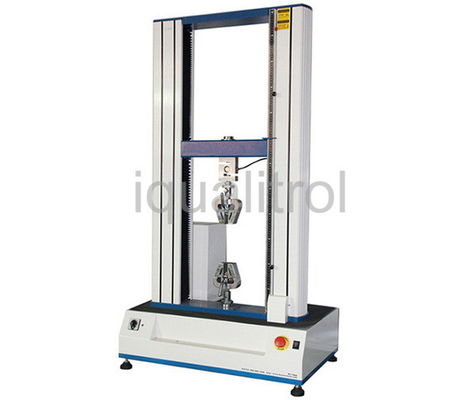

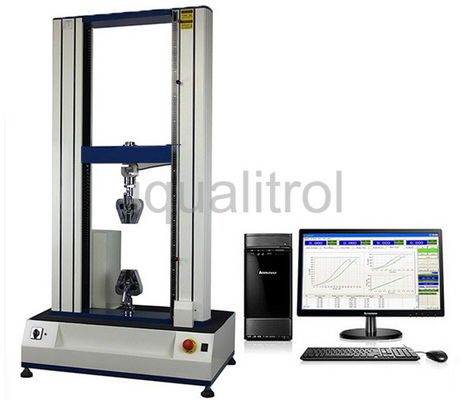

Computer Software Controlled Electronic Universal Material Testing Machine with Servo Motor
Technical Data Download: iqualitrol Universal Material Testing Machine
Product Overview:
iqualitrol SM-200 computer-controlled electronic universal testing machine is designed for universities, research institutes and design a new generation of computer-controlled electronic universal testing machine.
Computer system through the all-digital controller and servo motor rotation speed control system, the deceleration gear system by precision ball screw drive after moving beam up, down, complete specimen tensile, compression, bending, shear and other kinds of mechanical performance test, another test accompanied by a wide variety of configurations, in metal, nonmetal, compound materials and products in the mechanical performance test, has a very broad application prospects.
It is widely used in building materials, aerospace, machinery, wire and cable, rubber, plastics, textiles, household appliances and other industries of the material tests and analysis, scientific research institutions, universities, industrial and mining enterprises, technical supervision, inspection and arbitration departments ideal test equipment.
Technical Specifications:
| Capacity | Max available 200KN |
| Force Accuracy | ± 1% |
| Force resolution | 1/300 000 (6-speed full, regardless of file or equivalent) |
| Cross head measurement accuracy | higher than 0.0025mm |
| Deformation measurement accuracy | ± 0.5% (range of 0.2-10mm) |
| Test speed range | 0.01-500mm / min, and stepless speed |
| Speed control accuracy | ± 1% (0.01 10mm/min); ± 0.5% (10 ~500mm/min) |
| Constant force, constant deformation, constant displacement control range | 0.2% -100% FS |
| Test Space | A. stretching space: 600mm B. compression space: 700mm |
| Pressure plate size | Diameter 100 mm |
| bending supporting roller spacing | 300 mm |
| Branch roll width | 100mm |
| Fulcrum diameter | 30mm |
| power supply | AC380V ± 10%, 50Hz, Power: 3kW |
| Dimension | 130 × 650 × 2650mm |
| Weight | 2000Kg |
