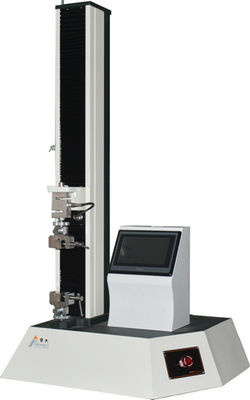

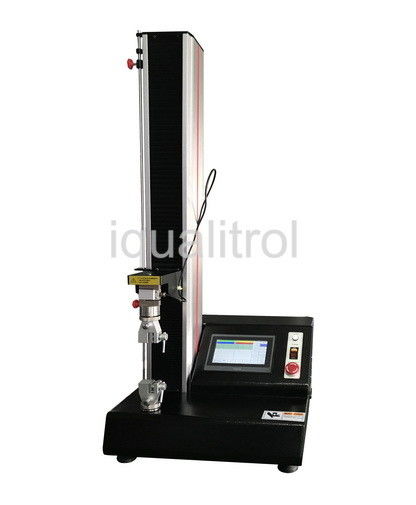

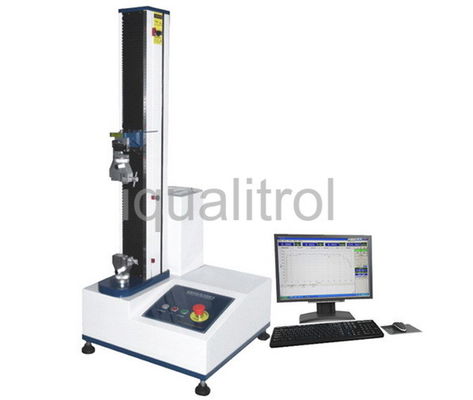

Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment

Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment
Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment

Large Image :  Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iUTM-1176S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Force: Accuracy Within ±0.5% Test Range: 0.5~100%F.S
Stroke: Max 1000mm Stop Test: Upper And Bottom Limit
Capacity: Max 500Kgf Control: Touch Screen Controller
High Light:

material testing apparatus

,

material testing equipment



Touch Screen Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment



Brief Introduction:

iUTM-1176S is used in fields of aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber plastic, paper products and packaging and color printing, adhesive tape, cases, handbags, textile, food, pharmaceutical and other industries.



To test physical properties of all kinds materials and finished products, semi-finished products, to buy all the different fixture do tensile, compressive strength, to pull, pressure, bending, tear, peel, adhesive force and the shear test, according to GB, ASTM, ISO, BS, DIN, JIS and other national or international standards for testing.



It is the ideal machine for factory enterprise, technical supervision departments, commodity inspection agencies, research institutes and tertiary institutions and other departments of the ideal test and research equipment.



Features:

The machine has compact structure, simple operation and comprehensive coverage, tensile, compressive, bending, folding, cutting, and other functions, and can realize a pull, pressure and other difficult test.



1.The structure of the machine adopts the advanced treatment of extruded aluminum type sealing plate of the lacquer that bake built-in high precision, low resistance, no clearance double roller screw and guide pillar, improve the efficiency of load and the rigidity structure;



2.The control system adopts panasonic digital ac server control high response frequency of the ac servo motor, guarantee the transmission system of high efficiency, smooth transmission, low noise, speed can be controlled within + / - 0.2% accuracy;



3.The microcomputer system using commercial computer as the main control machine, with our professional testing software, can complete all of the test parameters setting, working state control, data acquisition and processing analysis, result display and printing output;



4. The product is stable and reliable performance, high measurement accuracy and test software powerful, operation is simple and easy to understand.



Software Features:

1. Work with Windows platform, parameter setting, the operation is simple;

2. Using a single screen operation, do not need to switch from the picture

3. Software interface has three kinds of simplified Chinese, traditional Chinese and English language, easy to switch;

4. To the guild regulations test table mode;

5. Test data can be directly call in the main picture;

6. Multiple measurement units, metric system can switch;

7. Data comparison of u can be more curves at the same time;

8. With the function of automatic return;

9. Automatic correction function;

10. With the function of custom test method;

11. Test data computation analysis function;

12. Automatic magnification function, in order to achieve the most appropriate size of the graphics.

13. Do tensile, compressive, flexural, stripping, pull, pressure, fatigue test;



Technical Specifications:

Model Type iUTM-1176S
Capacity 2,5,10,20,50,100,200,500kgf (Select one)
Software test software under Windows10
Loading precision Within ±0.5%
Strength parses 1/500,000
Test range 0.5~100%F.S
Deformed precision Within ±0.5%
Test speed range 0.5~500mm/min,adjustable
Max test stroke Max 1000mm, include grippers length
Test space width 400mm
Unit switch Include multi-units of measurement, can switch metric system and British system.
Stop test Upper and bottom limit setting, emergency stop, force and elongation setting stop, specimen break stop.
Special features Capable to perpetual extension, holding pressure and fatigue testing.

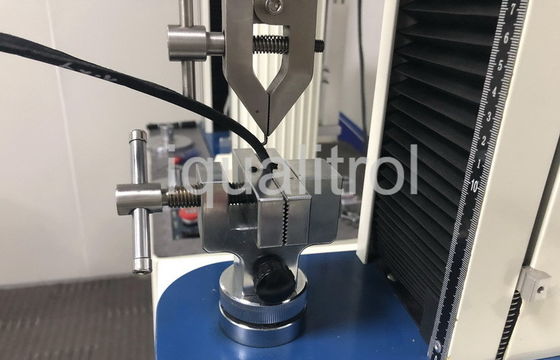

Option purchase PT-211 two points elongation gripper, other test grippers
Dimensions 76×44×150cm(W×D×H)
Weight About 70kg
Motor AC servo motor
Power 1PH,AC220V,50Hz,10A



Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment 0



Touch Controller Single Column Tensile Testing Machine 5KN / Material Testing Equipment 1
