|Force Accuracy:||Within ±0.5% Of Indication||Display Method:||LCD Display, Touch Type|
|Name:||Single Column Universal Testing Machine||Data Sampling Frequency:||200 Times/sec|
|Effective Width:||150mm||Effective Stroke:||1200mm|
|Displacement:||Within ±0.5% Of Indication|
Microcomputer Universal Material Testing Machine,
Universal Material Testing Machine Single Column,
Microcomputer Universal Testing Machine

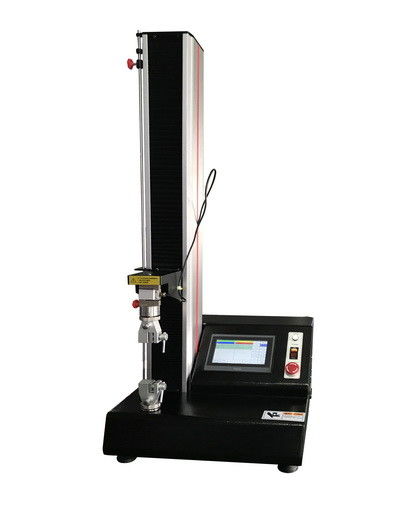

Touch Screen Microcomputer Single Column Tensile Testing Machine with Stroke 1200mm
For mechanical properties testing of non-metallic materials such as rubber, plastics, wires and cables, textiles, waterproof materials, and non-woven fabrics, and wire, metal foils, sheet metal, and metal rods.
Fixtures are also suitable for a variety of finished products stretching, compression, peeling, shearing, tearing test to determine the quality of the product.
iqualitrol iRY-5 can store the results of 10 test reference points, automatically calculate the average value, automatically grab the maximum value, the strength value at the time of breaking.
The machine includes a thermal printer that automatically outputs test results. (optional)
iRY-5 is simple in structure and easy to operate, can be placed directly on the floor for testing. Especially suitable for use in the production line to control the product quality.
|Force accuracy||Within ±0.5% of indication|
|Display method||LCD display, touch type|
|Unit switching||Kgf, lb, N|
|Data sampling frequency||200times/sec|
|Test machine resolution||Maximum load 1/±25000 yards, no division inside and outside, and full resolution|
|Load sensor||Basic configuration: pull, pressure sensor (maximum load)|
|Test speed range||100-500mm/min stepless speed regulation and 5-speed constant speed (special test speed can also be customized according to customer requirements)|
|Displacement measurement accuracy||Within ±0.5% of indication|
|Breakpoint ratio setting||0～99%, users can set proper break down time according to different materials|
|Test bench safety device||Upper and lower stroke limit device|
|Overload protection||Over 10% of maximum load, automatic machine protection|
|Fixture configuration||Set of tensile clamps|
|Weight of host||About 100 Kg|
