Product Details:
Payment & Shipping Terms:
|
| Capacity: | Max 200KN | Force: | Accuracy ±1% |
|---|---|---|---|
| Resolution: | Force 1/300 000 | Test Speed: | 0.01-500mm/min |
| Speed Control: | Accuracy ±1% (0.01 10mm/min) | Test Space: | Max 700mm |
| Highlight: | Electronic Universal Material Testing Machine,Universal Material Testing Machine 200KN,Universal Material Tester 200KN |
||

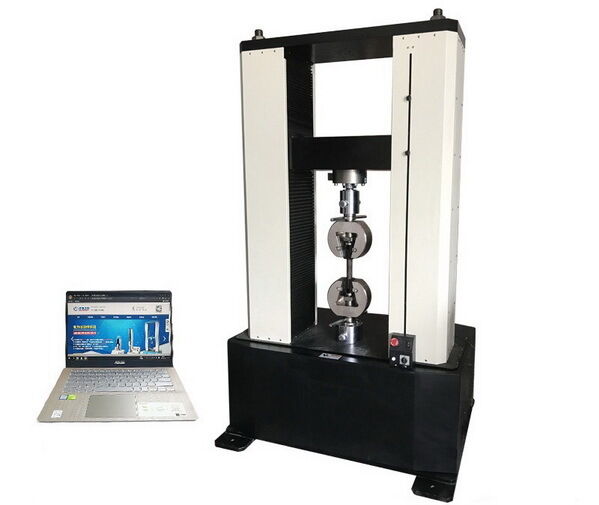

Computer Software Controlled
Electronic Universal Material Testing Machine with Servo Motor
Download Technical Data: iqualitrol Universal Material Testing Machine
Brief Introduction:
iqualitrol SM-200 computer-controlled electronic universal testing machine is designed for universities, research institutes and design a new generation of computer-controlled electronic universal testing machine.
Computer system through the all-digital controller and servo motor rotation speed control system, the deceleration gear system by precision ball screw drive after moving beam up, down, complete specimen tensile, compression, bending, shear and other kinds of mechanical performance test, another test accompanied by a wide variety of configurations, in metal, nonmetal, compound materials and products in the mechanical performance test, has a very broad application prospects.
It is widely used in building materials, aerospace, machinery, wire and cable, rubber, plastics, textiles, household appliances and other industries of the material tests and analysis, scientific research institutions, universities, industrial and mining enterprises, technical supervision, inspection and arbitration departments ideal test equipment.
Technical Specifications:
| Model | SM-100 | SM-200 | SM-300 |
| Max Capacity | 100KN | 200KN | 300KN |
| Display | Computer screen | ||
| Force Resolution | 1/500,000 | ||
| Force Accuracy | 0.30% | ||
| Displacement Resolution | 1/500,000 | ||
| Control mode | Computer software | ||
| Vertical Travel | 800mm | ||
| Testing Width | 550mm | ||
| Test Speed | 0.01～300mm/min, Set by software, with fixture for quick setting | ||
| Force Units | Kgf, N, Ibf, gf, ton, Mpa | ||
| Stop Modes | Over-loading, Emergency Stop, Breakup stop, Upper and lower limitation setting stop, automatic reset | ||
| Machine Dimension | 127×90×212cm(W×D×H) | 127×100×220cm | 135×110×235cm |
| Motor | Servo motor drive, synchronous wheel and precision ball screw drive | ||
| Power | 2KW | 3KW | 5KW |
| Weight | approximate 1100kg | 1700kg | 2000kg |
| Power supply | 380V/50Hz | ||
| Standard Delivery | 1 set grip, software, data cable | ||
