Product Details:
Payment & Shipping Terms:
|
| Display: | 5" High-definition LCD | Magnification: | 20X Digital Microscope |
|---|---|---|---|
| Conversion: | Scale HV, HK, HRA, HRB, HRC | Data Output: | Built-in Printer, RS232 Interface |
| Vertical Space: | 200mm | Horizontal: | 130mm |
| Highlight: | automatic brinell hardness tester,digital brinell hardness tester |
||

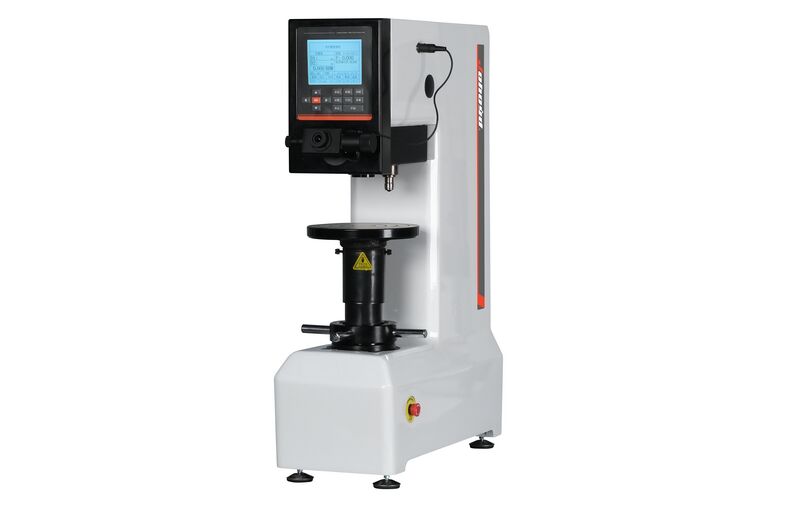

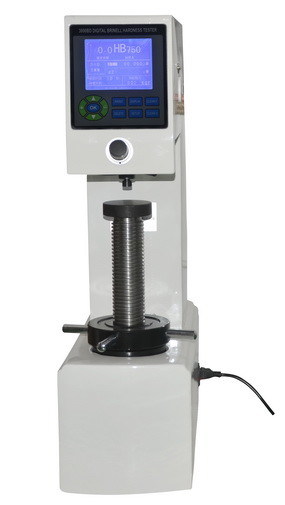

Large LCD Digital Brinell Hardness Tester with
Extended 20X Digital Microscope
Product Profile:
iqualitrol HBS-3000 Digital Brinell hardness tester apply the load cell control system, with 0.5‰ accuracy compression sensor to feedback and the CPU control system automatically compensate the test force lost during the test.
Indentation can be directly measured through digital measuring eyepiece, LCD shows the test force, indentation length, dwell time, test number, date and time on the large screen.
Press eyepiece button can automatically get the hardness value and shows on screen.
Test results can be saved for reviewing or be printed out by the built-in printer, and with RS232 interface for connecting to the computer.
Support optional video measuring device and CCD image automatic measuring system.
Application Range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
Technical Specification:
| Model | HBS-3000 | |
| Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
| Brinell Test Range | 8～653HBW | |
| Hardness Reading | LCD Display | |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS | |
| Data Output | Built-in Printer, RS232 Interface | |
| Microscope | 20x Digital Measuring Eyepiece | |
| Resolution | 0.005mm | |
| Dwell Time | 0~60s | |
| Vertical Space | 200mm | |
| Throat | 130mm | |
| Power Supply | AC220V/50Hz/1Ph, AC110V/60Hz/1Ph | |
| Execute Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 | |
| Dimension | 530×220×750mm, Packing Dimension: 650×435×1060mm | |
| Weight | Net Weight: 130kg, Gross Weight: 160kg | |
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | 20× Digital Measuring Eyepiece | 1 pc |
| Ф2.5mm, Ф5mm, Ф10mm Ball Indenter | each 1 pc | Large Plane Test Table | 1 pc |
| Small Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| Hardness Block 150~250 HBW 10/3000 | 1 pc | Hardness Block 150~250 HBW 5/750 | 1 pc |
| Fuse 2A | 2 pcs | Power Cable | 1 pc |
| Anti-dust Cover | 1 pc | Usage Instruction Manual | 1 copy |
