Product Details:
Payment & Shipping Terms:
|
| Model: | IRock-432TW | Scales: | HRA, HRD, HRC, HRF, HRB, HRG, HRH |
|---|---|---|---|
| Conversion: | Support Hardness Scales Conversion | Data Output: | Built-in Printer, RS232 Interface |
| Resolution: | 0.1HR | Application: | Quenched Steel, Tempered Steel, Annealed Steel |
| High Light: | 0.1HR Automatic Hardness Tester,Hardness Testing Apparatus 100kg |
||

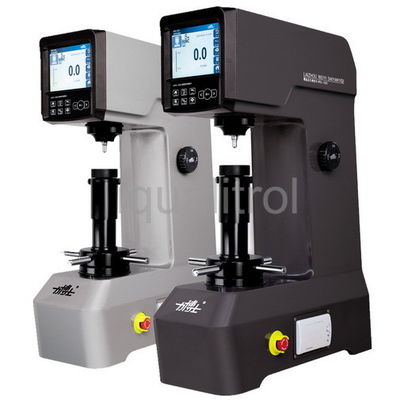

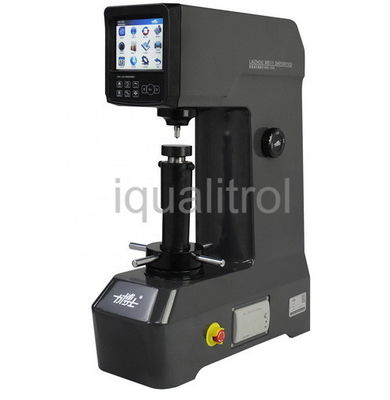

Automatic Loading Control Touch Screen Digital Rockwell Hardness Tester with Emergency Switch
Technical Data Download: iqualitrol Rockwell Hardness Tester iRock-432TW
Brief Introduction:
iRock-432TW can show and set the present scale, test force, test indenter, dwell time and hardness conversion, adopts high resolution color touch screen with high brightness display.
The main functions as follows:
► Support all the Rockwell scales;
► With hardness conversion among all metal hardness scales;
► Adjustable back light with energy-saving mode;
► Real time data saving in the folder, totally six folders, the data can be arbitrary copied, cut, deleted, pasted;
► Hardness scales, data range and the remarks can be selective displayed, similar to Excel function;
► Test results can be saved in real time and can be selective checked and printed out, automatic calculation of maximum, minimum and average value;
► Increase the operation process interface, easy to use; With RS232 interface for connecting to the computer.
Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specification:
| Model | iRock-432TW |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mm Ball Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Touch Screen Display |
| Test Scale | HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
| Data Output | Built-in Printer, RS232 Interface |
| Resolution | 0.1HR |
| Dwell Time | 0~60s |
| Vertical Space | 175mm |
| Throat | 165mm |
| Power Supply | AC220V, 50Hz |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 520×215×700mm, Packing Dimension: 650×370×950mm |
| Weight | Net Weight: 78kg, Gross Weight: 100kg |
Packing List:
| Instrument Main Body | 1 set |
| ф1.588mmBall Indenter | 1 pc |
| Large Plane Test Table | 1 pc |
| Hardness Block 60~70 HRC | 1 pc |
| Hardness Block 80~100 HRB | 1 pc |
| Power Cable | 1 pc |
| Level | 1 pc |
| Screw Driver | 1 pc |
| Anti-dust Cover | 1 pc |
| Diamond Rockwell Indenter | 1 pc |
| Middle Plane Test Table | 1 pc |
| V-shaped Test Table | 1 pc |
| Hardness Block 20~30 HRC | 1 pc |
| Weight A, B, C | 3 pcs |
| Fuse 2A | 2 pcs |
| Horizontal Regulating Screw | 4 pcs |
| Spanner | 1 pc |
| Usage Instruction Manual | 1 copy |
