Easy Reading Portable Digital Push Pull Force Gauge with Battery Over Load Protection

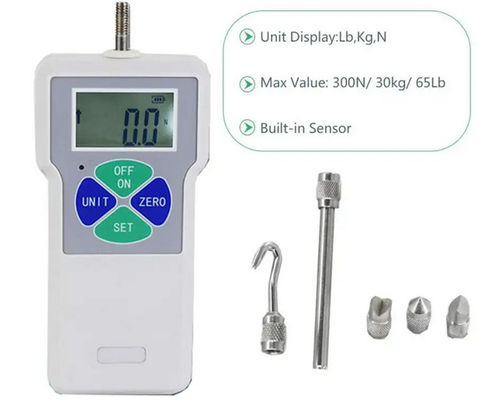

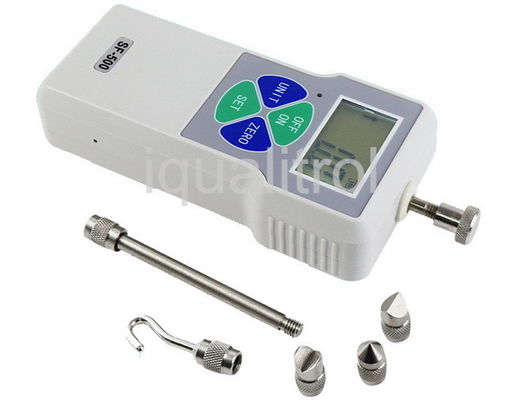

Large Image : Easy Reading Portable Digital Push Pull Force Gauge with Battery Over Load Protection

Product Details:

Place of Origin:	DONGGUAN
Brand Name:	iqualitrol
Certification:	CE
Model Number:	SF-500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton box
Delivery Time:	10 Work days
Payment Terms:	T/T
Supply Ability:	100 Sets per Month

Contact Now

Detailed Product Description

Max Load:	500N /50kg/110Lb	Resolution:	0.1N /0.01KG/ 0.01Lb
Sensor:	Built-in Sensor	Precision:	+/-0.5%
Power:	3.7V Lithium Battery	Charging:	4~6 Hours
High Light:	material testing instruments , material testing apparatus

Easy Reading Portable Digital Push Pull Force Gauge with Battery Over Load Protection

Characteristics:

1. Digital display,easy reading

2. In light weight,small size,easy to carry

3. Unit display:Lb,Kg,N

4. The battery has over-load protection in case of short circuit and leakage of electricity .It also can tell you when the battery is running low .It adopt the 3.7Vlithium battery and auto shut off with no operation in 10 minutes at the same time.

Main technical parameters:

Model	SF-2	SF-3	SF-5	SF-10	SF-20	SF-30	SF-50	SF-100	SF-200	SF-300	SF-500
The max. Load value	2N	3N	5N	10N	20N	30N	50N	100N	200N	300N	500N
	0.2kg	0.3kg	0.5kg	1kg	2kg	3kg	5kg	10kg	20kg	30kg	50kg
	0.45Lb	0.65Lb	1.1Lb	2.2Lb	4.5Lb	6.5Lb	11Lb	22Lb	45Lb	65Lb	110Lb
Load Value	0.001N			0.01N				0.1N
	0.001KG			0.001KG				0.01KG
	0.001Lb			0.001Lb				0.01Lb
The sensor	Sensor inside
Precision	±0.5%
Power	3.7V lithium battery
Charging time	4~6 hours
Continuous usage time of battery	About 15 hours
Battery life	≥ 300 times
Charger	Input:AC100- 240V 50-60Hz Output: DC 5V 1000mA
Working temperature	5℃~35 ℃
Transportation temperature	-10℃~60℃
Relative humidity	15%~80%RH
Work Benvironment	No focus ,Non-corrosive in surroundings
