Product Details:
Payment & Shipping Terms:
|
| Model: | IGS-100D | Function: | Peak Retention Gs(Gauss) |
|---|---|---|---|
| Measure Range: | 0mT~200mT~2000mT | Accuracy: | 0~100mT 2%, Above 100mT 5% |
| Magnetic Field Under Test: | Dc Magnetic Field | Name: | Handheld Gauss Meter |
| High Light: | 2000mT Non Destructive Testing Equipment,180g Non Destructive Testing Equipment,Handheld Gaussmeter Gauss Meter |
||

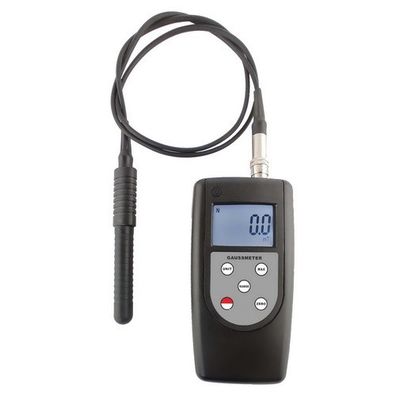

Handheld Gaussmeter Gauss Meter Surface Magnetic Field Tester Test Range 200 mT 2000 mT GS-100D
Features:
1, Portable, wide range;
2, Easy to operate, clear LIQUID crystal display;
3, There are measurement/peak retention, mT/Gs unit conversion;
4, 200mT/2000mT range conversion, etc.
Principle:
The tension sensor is based on Hall's principle.The circuit uses a low drift amplifier and a high stable power supply, controlled by a single chip microcomputer, and displays the measured values on a 41/2LCD.
Specifications:
| Measuring range | 0mT~200mT~2000mT |
| The accuracy of | DC,5%(measured in a uniform magnetic field) |
| Magnetic field under test | Dc magnetic field (static magnetic field) |
| Functional specifications | Peak retention Gs(Gauss) /mT (Millitesla) can be switched freely |
| Dc polarity of measurement | N for positive, S for negative |
| Operating Conditions | 5℃~40℃ |
| Relative humidity | 20%~80%(There is no dew) |
| Power supply | 4x1.5v AAA (UM-4) Battery |
| Overall dimensions | 140mm (L) X73mm (W) X 30mm (H) |
| Instrument weight | 180g |
| Display mode | 41/2LCD |
| According to the unit | mT/Gs |
| Standard Accessories | Main engine (one) |
| Hall sensor (one) | |
| Operating Instructions (one copy) |
