High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring

High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring
High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring

Large Image :  High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring

Product Details:
Brand Name: iqualitrol
Model Number: HF-1000K
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Peak Load: 1000KN Resolution: 1KN /0.1kg/ 0.1Klbs
Temperature: 5° C~35° C Humidity: 15%~80%RH
Data Output: RS232 Cable Power: Rechargeable Battery
Highlight:

material testing apparatus

,

material testing equipment



Connect the computer Digital force gauge(HF 2000N~1000K)
Big memory deposit  LCD overturns show



Product Description

1. The HF series are digital force gauge with compact size, high accuracy, they are easy to operate and handy to carry out.



2. Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.



3. This digital force gauge is new generation pulls.



Character:

1. Connect the computer in-phase test.
2. The compare value set by user’s request.


3. Big memory saving function.
4.  LCD overturns show.


5.  Auto peak.
6 . Auto power off.



Model specification sheet of force gauge with external sensor:

Model specification HF-2000 HF-5000 HF-10K HF-20K HF-50K HF-100K HF-200K HF-500K HF-1000K
Peak load value 2000N 5000N 10KN 20KN 50KN 100KN 200KN 500KN 1000KN
load division value 1N 1N 0.01KN 0.01KN 0.01KN 0.1KN 0.1KN 0.1KN 1KN
  0.1kg 0.1kg 0.001kg 0.001kg 0.001kg 0.01kg 0.01kg 0.01kg 0.1kg
  0.1lbs 0.1lbs 0.001lbs 0.001lbs 0.001lbs 0.01lbs 0.01lbs 0.01lbs 0.1lbs
Indication error ±1% ±1%
Unit N / (KN), kg / (Mg or t), lb (KIb)
Data interface Rs232 nine-hole socket
Power rechargeable batteries, charger(charging voltage 100V-240V)

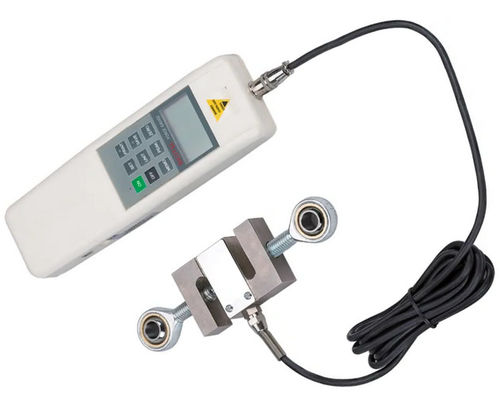

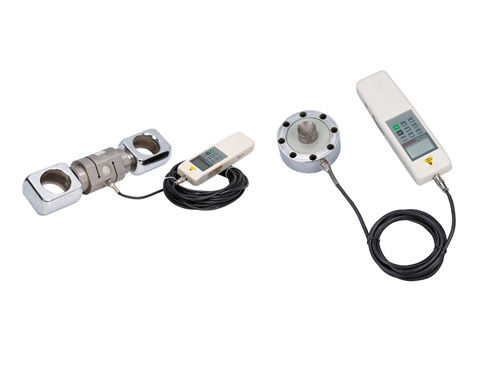

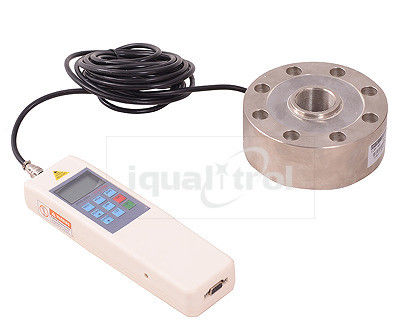

Sensor structure S-tye or column sensor with high precision (external sensor)
Ambient temperature 5° C~35° C
Transport temperature -10° C~60° C
Relative humidity 15%~80%RH
Working conditions No hypocenter and corrosive medium
Gross weight 6 kg 9 kg 24 kg 36 kg
Size 280 x 200 x 170 mm 310 x 260 x 190 mm



High Capacity Compact Size Digital Force Gauge with RS232 Data Transferring 0



The force gauge has advantages of high precision, easy operation and carry. What's more, it has kinds of testing modes, convenience for conner and it can store and input data to computer for statistical analysis as well as constitutes testers with different functions, combination with test-beds and clamp.



Users can input local acceleration of gravity value to make test more precise.



Functional characteristics:

1.High precision and high resolution.

2.Five testing modes and three display methods for selection----enhance testing efficiency to the maximum extent.



3.N (Newton), kg (Kilogram) and Ib (Pound) three measuring units for selection and conversion.

4.6 digits large screen display.



5.Setting function of gravity acceleration----User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate.



6.Max. and min. and comparison value can be setted for statistic analysis. The buzzer will alarm if exceeding comparison value.

7.Data storage function. 896 testing values can be stored.



8.Data output function. The data can be input into computer through data line for various analyses.

9.Environmental protection. The device will automatically stop if no operation within 10 minutes.



10.High quality chargeable power supply. The charging voltage is avai-lable from 100V to 240V, which can accommodate most areas in domestic and at abroad. It has also protection functions for short circuit, leakage and overload.



11.2 sets mounting dimensions, it is applied for most testing platforms domestically and easy for users to install it to platform.



12.Special testing function of make-break ability of switch contact to make the make-break testing be more accurate.
