| Features: | Compact Device,accurately Controlling,high Testing Accuracy, Convenient Specimen Clamping | Force Gauge: | Combine NK, HF Force Gauge And Special Fixture In Testing |
|---|---|---|---|
| Rated load: | 500N (Can Also Be Configured 1000N) | Net weight: | 10.6Kg |
| Application: | Wiring Harness And Electronic Industry | Effective stroke: | 50mm |
| Highlight: | material testing apparatus,material testing equipment |
||

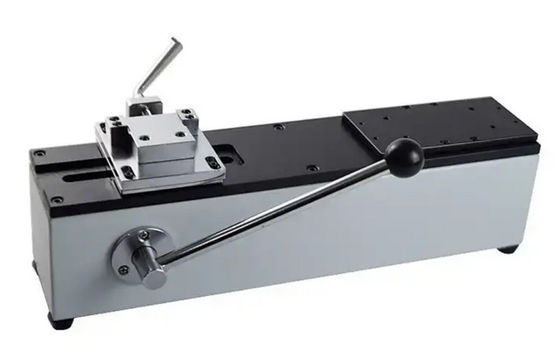

ADL Terminal Pulling Force Tester for Wiring Harness and Electronic Industry
Brief Introduction:

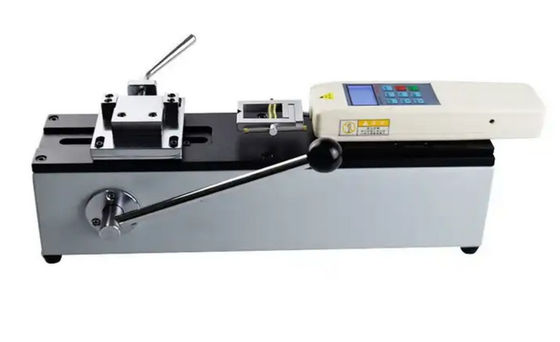

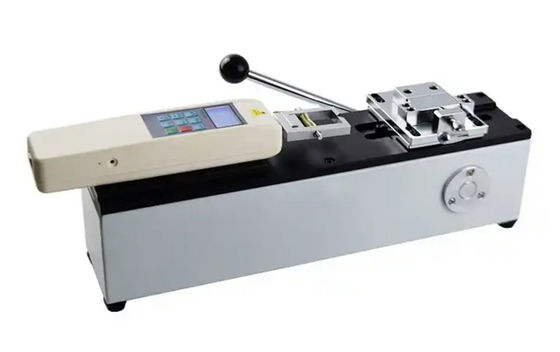

iqualitrol ADL Terminal pulling force tester is a kind of testing equipment to wiring harness and electronic industry, specifically used to test all kinds of wire terminals pulling-out force. The instrument can combine NK, HF force gauge and special fixture in testing.
This instrument has characteristics of compact device,accurately controlling,high testing accuracy, convenient specimen clamping, simple operation, etc. It is the ideal equipment for wiring harness factory to ensure product quality. Transverse Wire Terminal Force Pull Out Tester

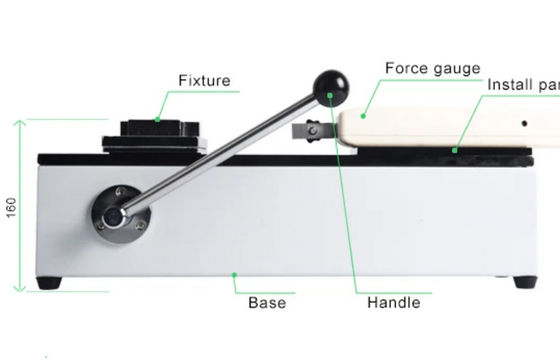

System Diagram:
Technical Specifications:
1: Manual operation, simple and stable.
2:This machine can be installed on the table (platform) to make the frame more stable to use.
3:Size: 45cm×26cm×16cm
4:Effective stroke: 50mm
5: Rated load: 500N (Can also be configured 1000N)
6: Net weight: 10.6Kg
