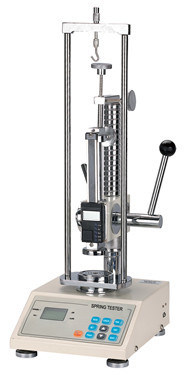

50N Universal Material Testing Machine ATH-50 Digital Spring Tester

50N Universal Material Testing Machine ATH-50 Digital Spring Tester
50N Universal Material Testing Machine ATH-50 Digital Spring Tester 50N Universal Material Testing Machine ATH-50 Digital Spring Tester

Large Image :  50N Universal Material Testing Machine ATH-50 Digital Spring Tester

Product Details:
Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: ATH- 20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Loading Capacity: Maximum Testing Loading 20N Resolution: Force Loading Resolution 0.001N
Platen: Diameter 34mm Spring Length: Maximum 80mm
Displacement Travel: Maximum 60mm Displacement Resolution: 0.01mm
High Light:

20N Universal Material Testing Machine

,

iqualitrol Universal Material Testing Machine

,

Digital Spring Tester



50N Universal Material Testing Machine ATH-50 Digital Spring Tester



Operation Manual Download: iqualitrol ATH Spring Tester Machine Manual



Function:

The ATH spring pull pressure test stand is specially design for measuring the stretches and compression distortion value of spring, and the load relations characteristic.It is applied in measuring the working load of spring when it on the certain length stretched and compressed.



Parameter:

1: Test spring max unsupported length: 10N~30N is 100mm, 50N~500N is 150mm, 1000N~5000N is 200mm

2: Max distortion value stroke: 10N~30N is 70mm, 50N~500N is 90mm, 1000N~5000N is 150mm
3: Distortion value resolution eH: 0.01mm
4: Distortion value display interface: Five figures and “-” position liquid crystal display;
5: Max working load: According to measuring range;
6: Load resolution eP: 0.02N
7: Platen diameter: 49mm
8: Shows value error: ±1%
9: Power source: Exchanges 220V-50Hz

10 :Power: 13W

11: Operating temperature: 20±10℃

12: Storage and transport temperature: -27℃~+70℃
13: Relative humidity: 15%~80%RH.



Specification and Parameter:

odel Number ATH- 10 ATH- 20 ATH- 30 ATH- 50 ATH- 100 ATH- 150 ATH- 200 ATH- 300 ATH- 500 ATH- 1000 ATH- 2000 ATH- 3000 ATH- 5000
Maximum testing load 10N 20N 30N 50N 100N 150N 200N 300N 500N 1000N 2000N 3000N 5000N
Minimum resolution 0.001N 0.01N 0.1N
Diameter of the platen 34mm 48mm 108mm
Maximum free length of measurable spring 80mm 150mm 200mm
Length of travel of the displacement scale 60mm 90mm 150mm
Division value of the displacement scale 0.01mm
Indication error ±1%
Power Supply AC 110-220V, 50HZ-60HZ
Power capability (without printer) 13W
Power capability (with printer) 20W
Working temperature 20±10℃
Temperature of storage and transportation -27℃~+70℃
Relative temperature 15%~80%RH



Schematic Diagram:

50N Universal Material Testing Machine ATH-50 Digital Spring Tester 0





Frame of Display Ruler of Deflection:

50N Universal Material Testing Machine ATH-50 Digital Spring Tester 1

50N Universal Material Testing Machine ATH-50 Digital Spring Tester 2

50N Universal Material Testing Machine ATH-50 Digital Spring Tester 3
