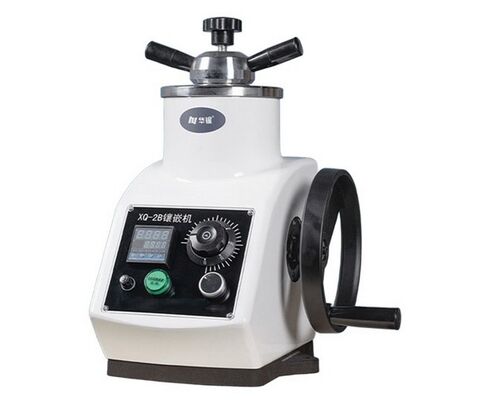

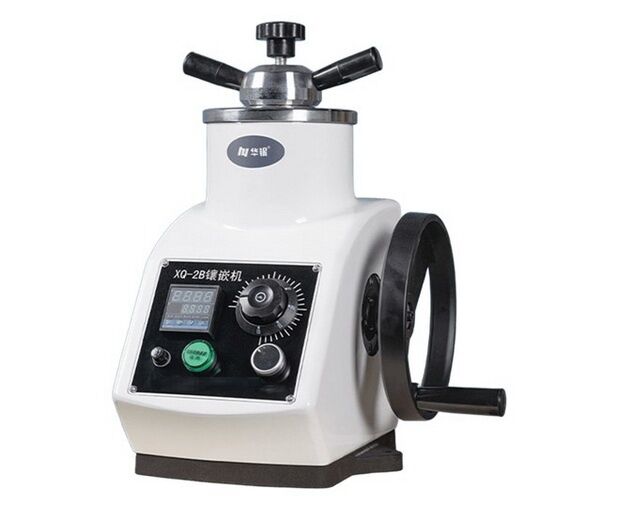

Manual Metallographic Mounting Press iPress-2B Max Heating Temperature 190℃
Brief Introduction:
The iqualitrol iPress-2B metallographic mounting machine is suitable for mounting small, difficult-to-hold, or irregular metallographic and petrological samples, facilitating cutting or grinding and polishing, followed by metallographic, spectral testing, or hardness testing.
This machine is controlled by a digital temperature controller, with a timer controlling the sample preparation time, and it automatically cuts off the heating circuit at the end of the preparation.
The iPress-2B metallographic mounting machine is an ideal sample preparation device for laboratories in colleges and mining enterprises.
Technical Specifications:
| Model | iPress-2B |
|
Sample pressing diameter |
Three specifications: φ22, φ30, φ45 (One standard configuration, choose when ordering) |
|
Temperature control range |
Room temperature to 190℃ |
| Timing range | 0 to 60 minutes |
| Total power | ≤800W |
| Input voltage | Single-phase AC220V 50Hz |
| Dimensions | 360mm × 290mm × 440mm |
| Net weight | 35kg |
