| Max Load: | 50Kg | Test Speed: | 10 ~ 60mm/min |
|---|---|---|---|
| Test Stroke: | Adjustable (0 ~ 360 Mm) | Weight: | About 40Kg |
| Highlight: | material testing apparatus,material testing equipment |
||

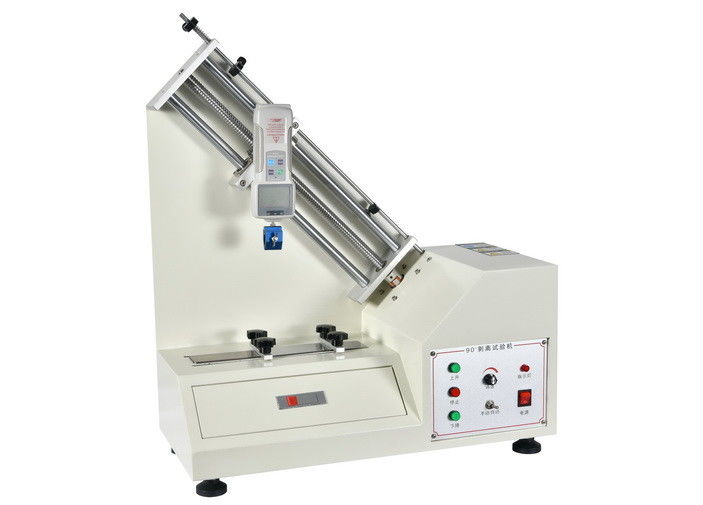

90 Degree Peel Strength Material Testing Machine with
Speed Range 10~60mm/min
Brief Introduction:
iqualitrol 90 Degree Peel Strength Material Testing Machine is specially designed to test the adhesion of copper foil circuit on PC board or tin foil, lead foil, tape, etc., and adhere to the surface fastness of the object.
The test piece is peeled at a vertical angle during the test. The actual 90 degree peel strength can be measured, and a high-precision number push-pull force table can be selected.
Technical Specifications:
|
Product name
|
90 Degrees Peeling Strength Tester for
Adhesive Tape and Circuit Board |
||
|
Capacity
|
3, 5, 10, 20, 30, 50kg
|
||
|
Peeling angle
|
90°
|
||
|
Size
|
660*310*730mm
|
||
|
Weight
|
40kg
|
||
|
Power supply
|
AC220V, 2A
|
||
Brief Introduction:
iqualitrol Self-adhesive peeling strength testing machine can measure the tensile force, tearing, peeling, adhesion resistance of various materials. The test date, time and display value set by the monitor can be printed.
Can be equipped with all kinds of fixture and elongation test device, or according to customer needs assembly.
Widely used in aerospace, petrochemical, machinery manufacturing, wire, cable, textile, fiber, plastic, rubber, ceramics, food, medical packaging, aluminum plastic pipe, plastic doors and Windows, geotextile, film, wood, paper, metal materials and manufacturing, can automatically calculate the maximum test force value, breaking force value and other test data.
Technical Specifications:
| Capacity | 5, 10, 20, 25, 50, 100, 200kg (Optional) |
| Unit switch | G, kg,N,LB |
| Load reresolution | 1 /100, 000 |
| Load accuracy | ≤0.5% |
| Maximum travel | 600~800mm (can be customized according to customer requirements) |
| Test speed | 50-300mm/min (knob adjustable speed) |
| Display device | LCD display (can display and print test times, test value, maximum value, fracture value, etc.), can be connected to PC computer operation. |
| Appearance size | (LXWXH) 500×440×1500mm |
| Weight | 75kg |
| Power supply | 220V, 3A |
| Delivery | Tension jig set |
