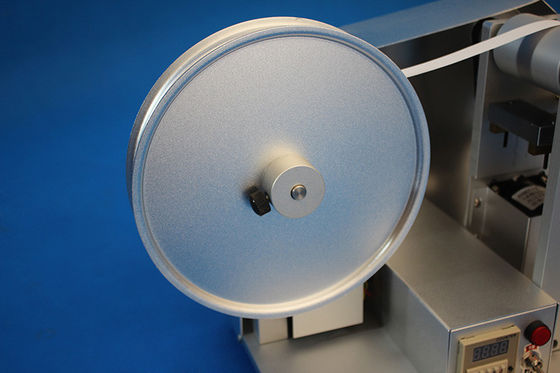

RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04

RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04
RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04 RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04 RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04 RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04

Large Image :  RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iRY-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiablee
Packaging Details: Plywood Box
Delivery Time: 4 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Load: 275g, 175g, 55g Counter: Rotary Counter
Speed: 1min/2670mm Rotation Speed: 17rpm
Power Supply: AC220V/50Hz/1P Dimension: 800×300×380mm
High Light:

material testing apparatus

,

material testing equipment



RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04



Model: iRY-6

Brief Introduction:

RCA Tape Abrasion Tester is suitable for abrasion resistance test of various surface coating (electroplating, baking paint, screen printing, etc.) test specimens.



After rolling the non-oiled paper or tape and the sample, it can be rotated The number of discriminating the effect of its wear.



Tape abrasion tester based on standard: ASTM F2357-04



With RCA special tape, apply to the surface of the product with a fixed weight (55g, 175g, 275g).



Fixed diameter roller and constant speed motor with special counter. The wear resistance of the product is determined by the number of times the product can withstand wear. Widely used in mobile phone surface coating performance testing.



RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04 0



Technical Specifications:

Load 275g, 175g, 55g
Counter Rotary Counter
Speed 1min/2670mm; 1cyc/157mm; Non stop operation
Rotation speed 17rpm
Power supply AC220V/50Hz/1P
Dimension 800×300×380mm



RCA Tape Abrasion Tester for Surface Coating Specimens Conform ASTM F2357-04 1


Standard Delivery:
1, Weights 55g, 175g, each one
2. Hexagon wrench
3, Level
4, Magnifier
5, Binder Clip
6, O-ring
7, One roll of paper tape



Summary iRY-6:

The RCA Abrasion Wear Tester is used to test surfaces for resistance to abrasion and wear. Typically used on painted or plated organic finishes, foil, and inked key pad lettering.



This tester is widely used as a standard for many silicone key pad and membrane switch manufacturers. This abrader is used as a standard to the auto, appliance, cell phone, plastics, and coating industries. It uses an inexpensive roll of throw away abrasion paper. All build-up error is eliminated and consistent readings are easily obtained.



The RCA Abrasion Wear Tester was designed to test numerous shapes and finishes with ease and consistency. A simple change to the adjustable vertical shaft will allow for testing flat, convex, and concave shaped surfaces.



They can be used to test painted and organic finishes, foil, and inked keypad lettering for resistance to abrasion and wear. These testers have become a standard in automobile, appliance, electronics, cell phone, plastics and coating industries.
