Load: | 250g, 500g, 1000g | Test Speed: | 60,70 Rpm Or Specified |
---|---|---|---|
Standard Delivery: | Grinding Wheel 1 Set, 1 Set Of Sand Paper | Grinding Wheel: | H18 |
Application: | Leather, Cloth, Paint, Paper, Floor Tiles, Plywood | Standard: | ISO 9352 |
High Light: | material testing instruments,material testing apparatus |

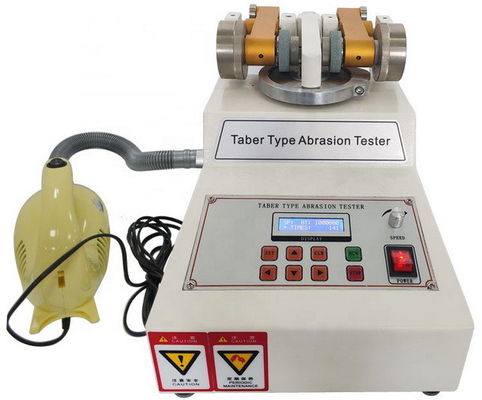

Digital Display Taber Abrasion Tester for Leather Cloth and Rubber Testing
Model: iRY-7
Brief Introduction:
iqualitrol taber abrasion tester is suitable for leather, cloth, paint, paper, floor tiles, plywood, glass, natural rubber until wear test.
The method is to use a standard cutter to cut the test piece, with the specified model of the grinding wheel, and a certain load.
After the specified number of revolutions, the test piece is taken out and the state of the test piece after grinding or the weight of the test piece before the test and the weight difference after the test are observed.
Taber Abrasion Tester ASTM D7255 Leather Rotary Abraser for Wear Test applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber.
The method is using the standard knife cutting the specimen, and then using the regulated model of grinding
wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number,
observe the condition of the specimen or compare the weight with the previous materials, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Abrasion Index Calculation Formula: Abrasion Loss Weight / Test Rotation Number × 1000 Alternative Grinding Wheel Number: H18
Technical Specifications:
Test piece | outside diameter 108mm, inside diameter 8mm |
Load | 250g, 500g, 1000g |
Counter | Electronic display 6 digits, automatic shutdown |
Test plate speed | 60,70 rpm or specified |
Dimension | 30x43x30cm |
Weight | 30Kg |
Standard Delivery | Grinding wheel 1 set, 1 set of sand paper |
Grinding wheel | H18 |
Power supply | AC220V/50Hz |
