Product Details:
Payment & Shipping Terms:
|
| Model: | IRY-11 | Name: | Peel Strength Tester |
|---|---|---|---|
| Measurement Range: | 0~1000J/m2 | Accuracy: | <1J/m2 |
| Resolution: | <0.1J/m2 | Impact Angle: | 90° |
| Display: | 5.7-inch LCD Screen | Power Supply: | AC220V/50HZ |
| Highlight: | Interlayer Peel Bond Strength Tester,CE Peel Strength Test Equipment |
||

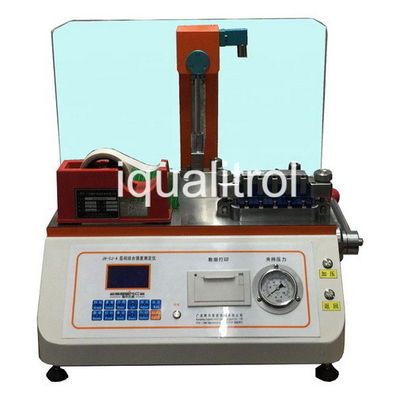

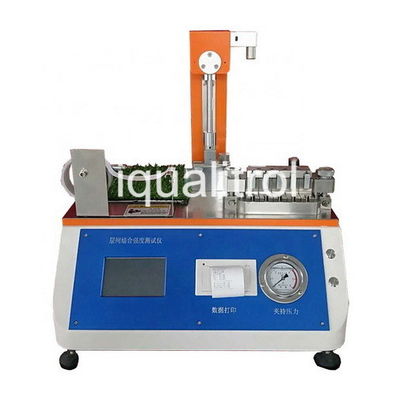

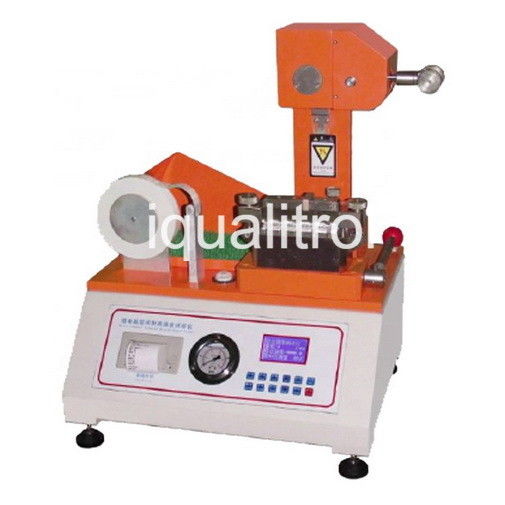

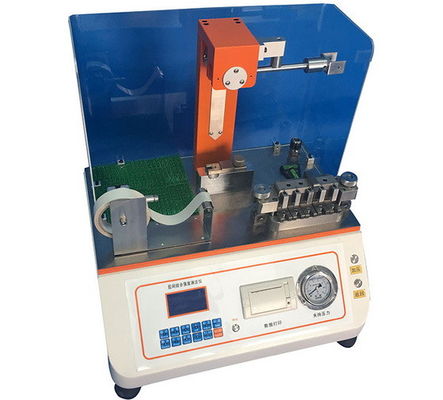

Interlaminar Adhesive Strength Interlayer Bonding Strength Testing Machine
Brief Introduction:
Inter-layer bond strength tester (also known as interlayer peel strength tester, interlayer bond strength tester, internal bond strength tester, etc.) is mainly used to test the Z-direction tensile strength of paper and paperboard (ie, internal bond strength or interlayer bonding). Dedicated testing instrument for strength.
Test Principle:
The combination of double-sided tape-sample-double-sided tape forms a sandwich structure, and the interlayer is pressed between a metal flat anvil and an aluminum block, and the inner surface of the upper portion of the aluminum block is struck by a pendulum to flip the aluminum block, and The sample was destroyed in the Z direction, and the energy absorbed during the destruction of the sample was calculated by measuring the high position of the MAX of the swing.
Executive Standard:
1. Determination of the bond strength of GB/T 26203 paper and paperboard (Scott type)
2, "TAPPI T-569 internal bond strength (scott type) correction"
Technical Specifications:
| Name | Factory Price Digital Scott Corrugated Board Cardboard Internal Ply Bond Tester |
| Sample size | 25.4x25.4mm |
| Sample amount | 5 pcs |
| Sample parallelism | Less than 0.1mm |
| Maximum sample thickness | 1.5mm |
| Sample pressure |
(690+/-21)kpa or (1034+/-34)kpa, |
| Sample hold force | 0~400N(adjustment) |
| Impact angle | 90° |
| Dimension | 70 × 34 × 60 cm |
| Weight | 91 kg |
