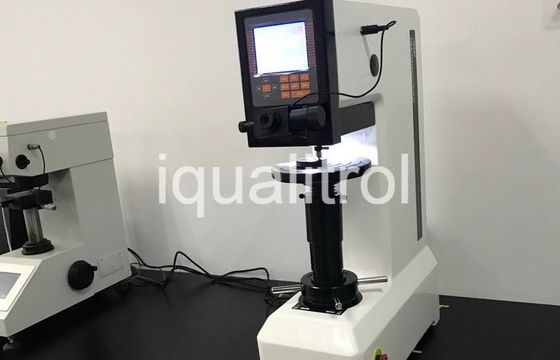

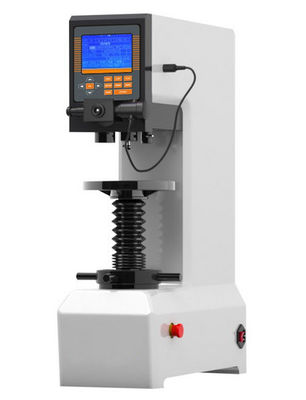

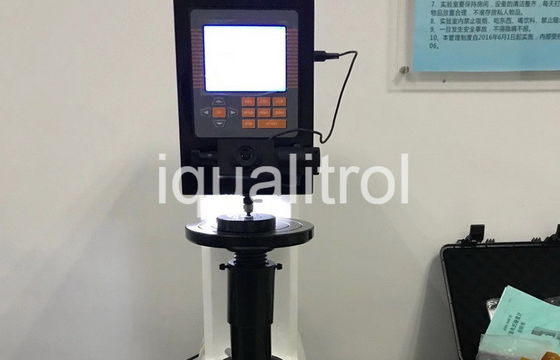

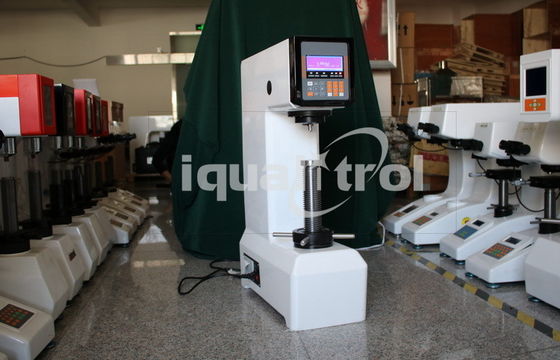

Built-in Printer High Precision Brinell Hardness Testing Machine 0.125um With 10X Eyepiece

Name: Built-in Printer High Precision Brinell Hardness Testing Machine 0.125um With 10X Eyepiece
Brand: iqualitrol
SKU: HBS-3000
Rating: 4.5 (198 reviews)

Large Image : Built-in Printer High Precision Brinell Hardness Testing Machine 0.125um With 10X Eyepiece

Product Details:

Brand Name:	iqualitrol
Model Number:	HBS-3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	10 Working Days
Payment Terms:	T/T
Supply Ability:	20 Sets per Month

Contact Now

Detailed Product Description

Reading:	LCD With Hardness Conversion	Microscope:	10X Digital Microscope, Total 20X
Vertical Space:	280mm	Ball Indenter:	Diameter 2.5mm, 5mm, 10mm
Data Output:	Built-in Printer	Horizontal:	Space 150mm
Highlight:	High Precision Brinell Hardness Testing Machine , Brinell Hardness Testing Machine 0.125um , CE Brinell Hardness Test Machine

LCD Screen Built-in Printer Digital Brinell Hardness
Tester with 10X Eyepiece

Technical Data Download: iqualitrol Brinell Hardness Tester HBS-3000
Operation Manual Download: Brinell Hardness Tester HBS-3000

Brief Introduction:
Digital display Brinell hardness tester HBS-3000 uses computer software programming, photoelectric sensing technologies. Through button input, select the test method and hardness scales displays on LCD large screen.

Also displays the test method, test force, measuring indentation length, hardness value, dwell time, and hardness conversion, with built-in printer,RS-232 interface.

Technical Specifications:

Model	HBS-3000
Brinell ruler	HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000
Test force	62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Maximum height of test piece	280mm
Indenter to wall distance	150mm
Indenter - Upper wall distance	55mm (support customized)
Minimum measurement unit	0.125um
Dwell time	0~60s
Hardness test range	8~650HBW
Total magnification	20X
Executive standard	EN ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150
Hardness reading	Automatic calculation
power supply	AC220+5%,50~60Hz
Dimensions(mm)	565230798mm
Weight of host	About 200kg

Standard Delivery:

Name	Quantity	Name	Quantity
Digital Eyepiece	1	Diameter 2.5,5,10mm Carbide Ball Indenter	1
Standard hardness block	3	Large, V-type test bench	1
Power cable	1	Product certification, product instruction manual	1
Fuse	2	printer paper	1
RS232 Cable	1	Dust cover	1

Main Functions and Features:
1, HBS-3000 is a high precision, high repeatability and stability hardness testing machine, easy operation, convenient and practical, cost-effective.
2, Integrated digital microscope and precise data calculation system to display the hardness value directly with just one click;

3, Equips with precision sensors and computer control system, the test results are accurate and stable;
4, Automatically enter the indentation diameter, directly display the hardness value, support hardness conversion;

5, Equips with high-performance stepper motor automatically loading, dwell and unloading, low noise during the testing process;
6, Self-designed optical system, image clarity, brightness adjustable, long-term operation should not be fatigue;

7, with data transmission RS232 interface, the measurement data can be transmitted to the computer for editing and saving;
8, The shell is cast once, the structure is stable without deformation, and it can work in a relatively harsh environment; The surface is treated with automobile paint, which has strong scratching ability and is still bright and new for many years;

Application Range:
1, suitable for hardness tester with large grain metal materials, can reflect the comprehensive performance of the material;
2, cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.
3, can be used for hard plastic, bakelite and other non-metallic material hardness tester
