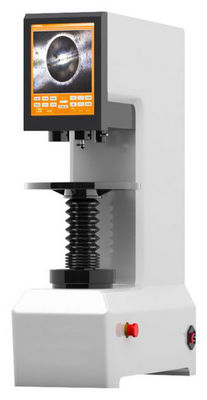

Motorized Lifting System Fully Automatic Brinell Hardness Tester with Touch Screen

Motorized Lifting System Fully Automatic Brinell Hardness Tester with Touch Screen
Motorized Lifting System Fully Automatic Brinell Hardness Tester with Touch Screen

Large Image :  Motorized Lifting System Fully Automatic Brinell Hardness Tester with Touch Screen

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ASTM E10
Model Number: HBST-3000Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Lifting System: Motorized Lifting System Display: Touch Screen
Indentation: Real Time Display Indentation Image Report: Word Format
Motorized Turret: Among Objectives And Indenter Test Force: Automatic Compensation
High Light:

Fully Automatic Brinell Hardness Tester

,

Automatic Brinell Hardness Tester 3.18HBW

,

Automatic Brinell Hardness Tester 653HBW



Motorized Lifting System Fully Automatic Brinell Hardness Tester with Touch Screen



Technical Data Download: iqualitrol Brinell Hardness Tester HBST-3000Z



Model: HBST-3000Z



Brief Introduction:

Fully automatic digital Brinell hardness tester adopts casting shell with strong rigidity and precise structure design, the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact.



The test process is controlled by CPU, using automatic switching between the objective and the indenter. The location of switching adopts mechanical and electronic double matching, makes the location precision more high.



With built-in computer, it makes the parameter setting and results display directly with easy operation, it also avoids the stimulation and visual fatigue of the light source of the eyepiece, and reduces the measuring error.



After select the scale, the instrument will automatically select the indenter and objective, the test table rises automatically and then back to the focusing position after loading the test force, it shows the clear image of the indentation and automatically measures, which realizes the fully automation of the Brinell test.



Features:

1, Integrated design with Built-in computer, support USB expand;

2, Motorized lifting system, auto positioning, auto measuring with high accuracy;

3, Directly display indentation, auto calculate hardness result;

4, Automatically generate report in Word format;

5, Motorized Turret between objectives and indenter;



Technical Specifications:

Model HBST-3000Z
Scales HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000
Loading Force (Kgf) 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000
Hardness Range 3.18-653HBW
Hardness Conversion Rockwell and Vickers scales (Meets standards ASTM, ISO, JJG)
Hardness Reading Built-in Computer, Automatic measuring
Resolution 0.1HB
Calibration Automatically/Manually
Force Calibration Automatic compensation
Limitation Setting Automatically judge whether in the setting ranges
Menu Language Support English
Loading Control Automatic Loading, Dwell, Unloading
Turret Automatic Switch Among Objectives and Indenter
Dwell Time 5~60s
Optic System LED Illumination
Objectives 1X, 2X
Total Magnifications 20X, 40X
Measuring Resolution 1.25um, 0.625um
Vertical Space 280mm
Horizontal Space 150mm
Data Output Built-in Printer, COM, LAN
Weight 180Kg
