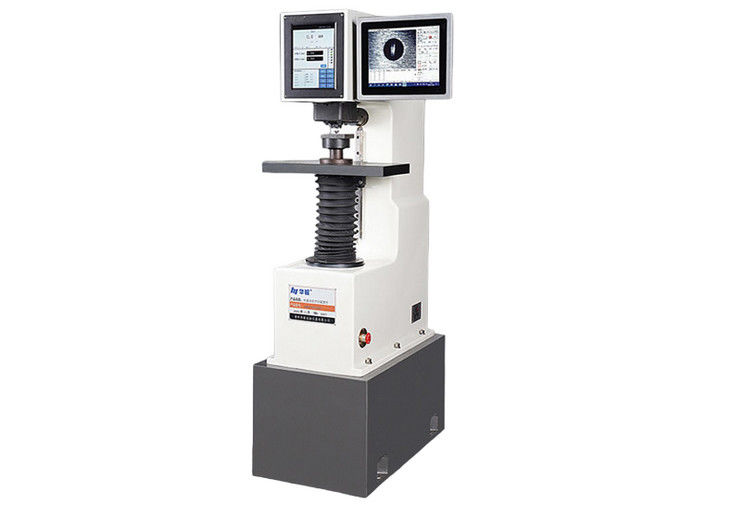

Automatic Heavy Duty Brinell Hardness Tester HBS-3000DZ with One Key Operation

Automatic Heavy Duty Brinell Hardness Tester HBS-3000DZ with One Key Operation

Main Features:

● One-button start, automatic completion of loading, dwell, unloading, data measurement and data display;

● The test force mechanism designed by applying Pascal's law is stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;

● The test force mechanism, pressure sensor and Brinell spindle indenter are directly connected to form the Brinell hardness test head technology-bistable direct-drive hardness tester loading unit;

● Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of loading and unloading test force, stable and impact-free, high force value accuracy;

● Automatic turret; fully automatic switch of optical lens and indenter;

● One-button start, automatic ascending and descending of Z axis, automatic completion of loading-dwell-unloading, automatic indentation measurement and hardness value display;

● Cast iron casing, solid structure, good rigidity, reliable, durable, high testing efficiency;

● 10.4-inch LCD touch screen; fully automatic test force application-dwell-unloading;

● The indentation image, test force, indentation length, dwell time, measurement times, hardness value, etc. are displayed on the computer, and the operation is convenient;

● The test process is automated, the operation is simple, and there is no human error;

● 12 test scales; 10 levels of test force, force range: 62.5kgf-3000kgf;

● The measurement stroke is large, and the distance from the center of the indenter to the machine wall is wide, which is suitable for measuring large workpieces;

● Chinese and English language interface conversion; various hardness value conversion;

● With database storage data function, test data is stored synchronously and can be exported;

● Equipped with USB and RS232 interfaces, it is convenient for users to process data;

● Adopt CCD image measurement technology, automatically capture indentation, automatically measure indentation diameter, automatically display hardness value and can report numbers by voice;

● Through the RS232 interface and data cable, it is connected to the integrated touch screen industrial computer, and various actions of the hardness tester are controlled on the computer, including: selection and application of test force, switching of indenter and objective lens, setting of dwell time, etc.; the test report can be output and printed in Word or Excel format;

● The accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.

Scope of application:

● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;

● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;

● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;

● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.

Technical Specification:
