| Display: | 7-inch LCD Touch Screen | Resolution: | 0.1HR |
|---|---|---|---|
| Loading: | Automatic Loading Control | Application: | Non-metallic Plastics, Hard Rubber |
| Vertical: | Specimen Height Max 170mm | Horizontal: | Specimen Depth Max 165mm |
| Highlight: | Benchtop Rockwell Hardness Tester,Rockwell Hardness Tester Machine 0.1HR |
||

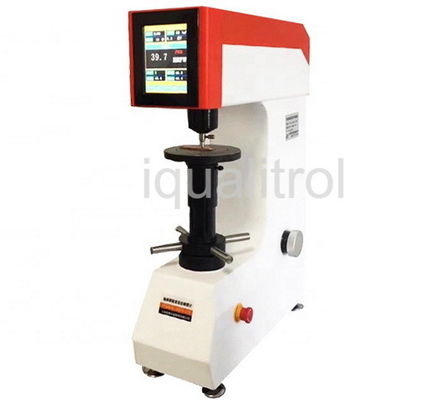

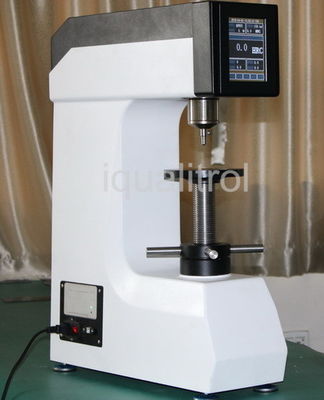

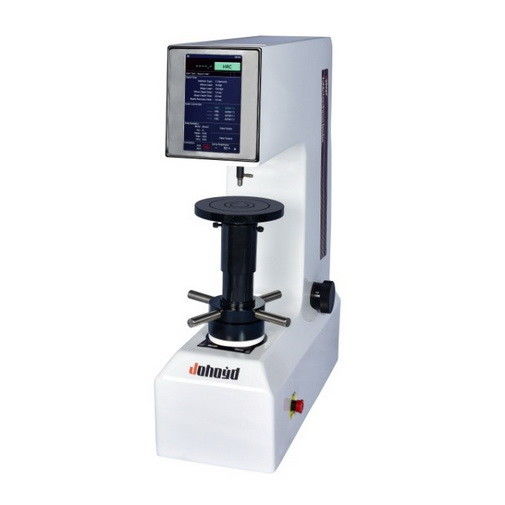

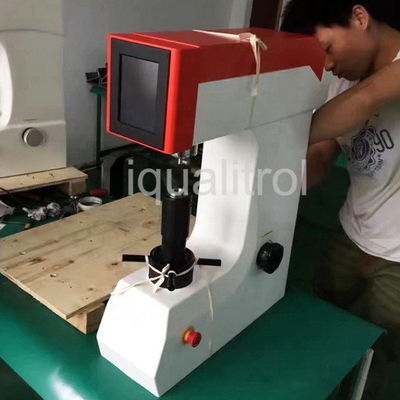

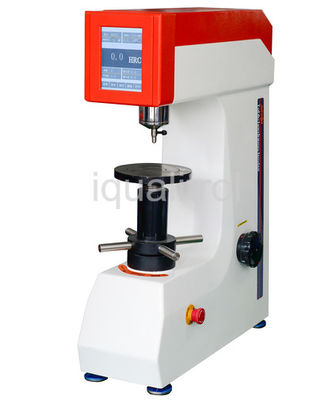

Tourch Screen Digital Display Metal and Plastic Rockwell Hardness
Tester with Built-in Printer
Brief Introduction:
iqualitrol XHRTS-150A color touch screen digital display plastic Rockwell hardness tester is a new generation of high-performance products with high performance, high precision and stable performance.
XHRTS-150A equips with cast shell, high stability, and its touch screen interface is menu display, makes the operation is simple, intuitive and convenient.
The measuring device adopts grating sensor and computer control, and the hardness indication value is directly displayed on the liquid crystal screen. It is a mechanical and electrical integration hardness testing instrument.
XHRTS-150A can automatically convert various hardness parameters to each other to identify the minimum thickness of the test piece. When the cylinder is tested, the correction amount is automatically added. Built-in printer to read the relevant test results. Automated operation, eliminating human error and reading errors! At the same time, the machine is also equipped with an emergency stop device, which is safer to use!
Main Technicial Specifications:
| Item | Specification |
| Intial test force | 10kgf(98.07N), allowable error ±2.0% |
| Total force | 60kgf(588N), 100kgf(980N), 150kgf(1471N) |
| Rockwell ruler | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK HRL,HRM,HRP,HRR,HRS,HRV |
| Inspection standard |
GB7407 national standard, JJG884 Verification procedure GB/T230.2national standard, JJG112vericification procedure |
| Accuracy | 0.1HR |
| Durating time | 1-60 Seconds |
| Hardness reading | Tourch screen LCD display |
| Max height of the test piece | 170mm |
| Indenter center to body distance | 165mm |
| Dimension | 550×220×730mm |
| Power supply | AC220V/50HZ/1Ph |
| Net Weight | 85Kg |
| Measuring range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-94 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-110 HRR:114-125 |
Main features and features:
1) Color touch screen with menu structure, easy operate;
2) Status bar show the test process in real time.
3) With hardness conversion function (HV, HBW, etc.)
4) With printer, test data can print out directly
5) Test force - Indenter type show on screen, avoid mistakes
6) Brightness is adjustable, to meet different visual habit
7) Car paint processing appearance, looking beautiful
Main use and the scope of application:
Cast and forged parts · Sample testing and acceptance testing
Planar and cylindrical workpieces ·Steel, non-ferrous metals
Automotive and aerospace industry ·Carbide, ceramic, stainless steel
Laboratory and workshop non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals.
Packing list:
| NO. | Name (specification) | Quantity |
| 1 | Diamond Rockwell indenter | 1 |
| 2 | φ1.5875mm ball indenter | 1 |
| 3 | φ3.175mm ball indenter | 1 |
| 4 | φ6.35mm ball indenter | 1 |
| 5 | φ12.7mm ball indenter | 1 |
| 6 | Large ,medium and V-type test beaches | 3 |
| 7 | Standard rockwell hardness block | |
| 8 | HRB | 1 |
| 9 | HRChigh and low | 1 each |
| 10 | standard plastic rockwell hardness block | |
| 11 | HRE, HRL ,HRM, HRR | 1 each |
| 12 | fuse 2A | 2 |
| 13 | Power supply line | 1 |
| 14 | USB communication line | 1 |
| 15 | Weight A,B,C | 3 |
| 16 | Dustproof plastic cover | 1 |
| 17 | Product certificate manual | 1 |
| 18 | print paper ,printer instruction manual | 1 each |
| 19 | Product instruction manual | 1 |
