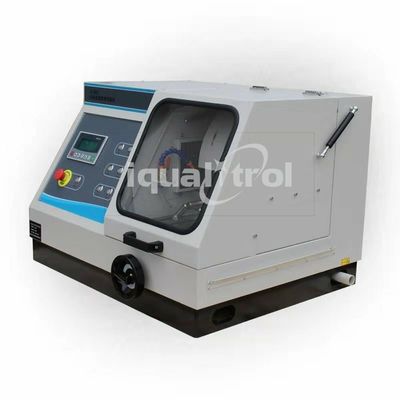

Iqualitrol Auto Metallographic Cutting Machine Length Max 200mm Water Cooling

Water Cooling Automatic Metallographic Cutting Machine Specimen Length Max 200mm

Model: Q-80ZH

Brief Introduction:

iqualitrol Q-80ZH is more convenient for user because of the large cutting chamber, the operator can choose cutting style in manual and automatic, meanwhile it is one of the sample preparation equipment of colleges and universities, factories and enterprises for metallographic test.

iqualitrol Q-80ZH cutting machine is composed of main unit, electric control box, cutting room, motor, cooling system, cutting grinding wheel and other parts.

iqualitrol Q-80ZH can cut diameter of 80mm within the round workpiece, but also can cut rectangular specimens within the cutting of hight 70mm, depth 100mm.

iqualitrol Q-80ZH comes with a cooling system to prevent overheating and burning during the cutting process.

Cutting speed can be set in accordance with the different specimen so as to improve the quality of cutting samples.

Technical Parameters:

What is Metallographic Cutting?

When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.

One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.

Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
