Product Details:
Payment & Shipping Terms:
|
| Automatic Measurement: | Automatically Or Manually Capture The Indentation, Measure The Indentation Diameter And Calculate The Corresponding Brinell Hardness Value | Equipment Control: | Supports One Click Start Of Loading And Unloadin, Turret Homing And Automatic Measurement, Independent Control Of The Rise And Fall Of The Hardness Tester Platform |
|---|---|---|---|
| Hardness Value Conversion: | Can Convert The Measured Brinell Hardness Value HB Into Other Hardness Values, Such As HV, HR, Etc. | Data Statistics: | Automatically Calculates The Average Value, Repeatability Error, Variance And Other Statistical Values Of The Measured Hardness |
| Over Standard Alarm: | Automatically Mark The Abnormal Value. When The Hardness Exceeds The Specified Value, It Will Automatically Alarm | Test Report: | Automatically Generate Reports In Excel / PDF / CSV And Other Formats, And The Report Template Can Be Customized |
| Highlight: | Antistatic FIBC Ton Bags,FIBC Ton Bags 140GSM,Foldable PP Bulk Bags |
||
Fully Automatic

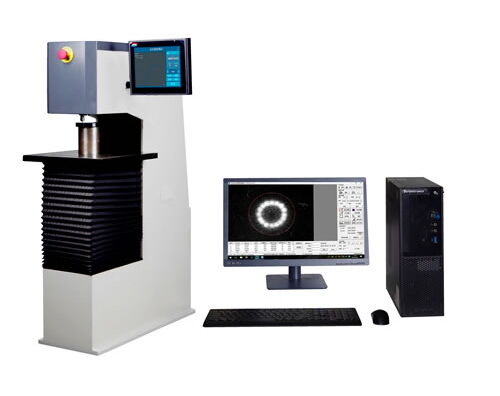

Brinell Hardness Tester MHBS-3000AZF with Motorized Lifting Structure
Brief Introduction:
The iqualitrol MHBS-3000AZF fully automatic Rockwell hardness tester is used to measure the Brinell hardness of metals and some non-metallic materials.
The hardness system has high precision and high degree of automation, suitable for high-end customers who need large measurement workload or high precision requirements.
Technical Specifications:
| Brinell Scales |
HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000 |
| Test Forces Kgf(N) | 62.5 (612.9N), 100 (980.7N), 125 (1226N), 187.5 (1839N), 250 (2452N), 500 (4903N), 750 (7355N), 1000 (9807N), 1500 (14710)N, 3000 (29420N) |
| Test force accuracy | 0.1% |
| Vertical Space | 400mm, for Max height of specimens |
| Dwell Time | 5-60 seconds |
| Brinell Range | 8-650HBW |
| Executive Standards | JJG150, GB/T231, ISO6506 |
| Depth Throat | 250mm, Distance from the indenter to inner wall |
| Lifting Structure | Support both manual and automatic |
| Focusing | Support both manual and automatic |
| Turret | Auto Turret |
| Pixel of Camera | 3MP |
| Indentation Measure | Support both manual and automatic |
| Hardness display | Automatic |
| Hardness conversion | ASTM E140, Automatic |
| Unqualified value alarm | Automatic prompting |
| Data Statistics | Mean value, maximum value, minimum value, variance, repeatability, accuracy, qualified rate |
| Power Supply | AC220+5%, 50-60Hz |
| Working Table | 408*380mm |
| Machine Dimension | 830*380*1200mm |
| Weight | 300kg |
Automatic Brinell Measuring System of MHBS-3000AZF:
