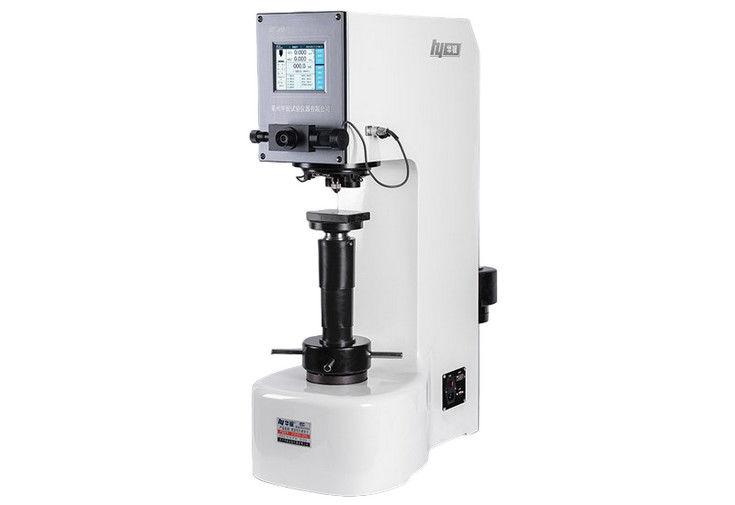

Weights Loading Automatic Turret Digital Brinell Hardness Tester Support Hardness Conversion

Weights Loading Digital Brinell Hardness Tester Support Hardness Conversion

Main Features:

● 210HBS-3000 is a manual turret; 220HBS-3000 is an automatic turret;

● Cast iron casing, solid structure, good rigidity, reliable, durable, high test efficiency;

● Adopt ARM high-speed processor, 5.6-inch LCD touch screen;

● Digital micrometer eyepiece, easy to operate;

● Weight loading system; dynamic display of the indenter during the test, real-time observation of the test status;

● The screen can display the test force, indentation length, dwell time, number of measurements, etc.;

● The test process is automated, the operation is simple, and there is no human error;

● With database storage data function, test data is stored synchronously and can be exported;

● Equipped with USB and RS232 interfaces, it is convenient for users to process data;

● Equipped with a micro printer, the test results can be printed directly;

● Optional HYHB300 image measurement system;

● The accuracy complies with GB/T231.2, ISO6506-2 and American ASTM E10.

Scope of application:

● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;

● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;

● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;

● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.

Technical Specifications:
