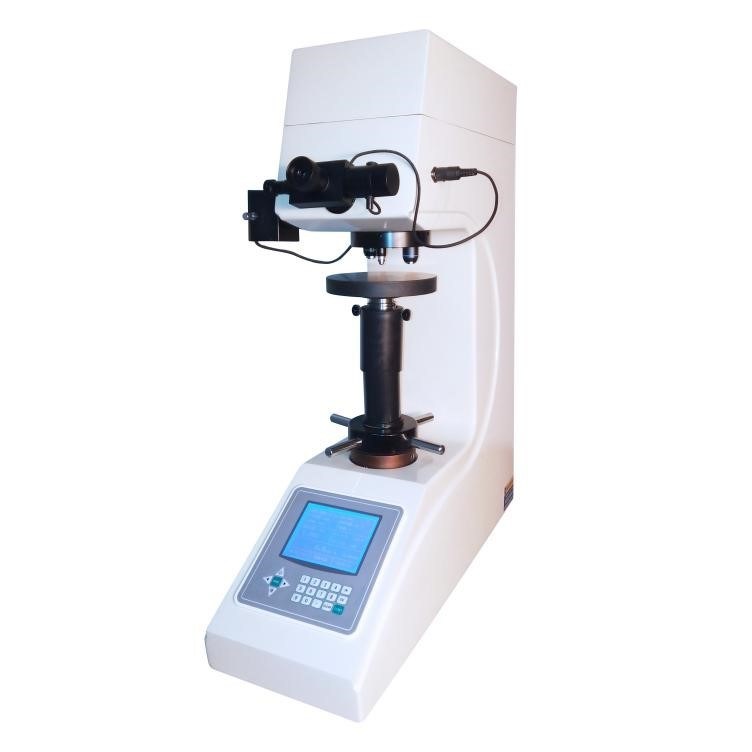

Digital Eyepiece MANUAL Turret Vickers Hardness Tester with closed loop Sensor Loading

Digital Eyepiece MANUAL Turret Vickers Hardness Tester with closed loop Sensor Loading
Digital Eyepiece MANUAL Turret Vickers Hardness Tester with closed loop Sensor Loading

Large Image :  Digital Eyepiece MANUAL Turret Vickers Hardness Tester with closed loop Sensor Loading

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HVS-5EHY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
HVS-5EHY: Test Force 5Kgf, Digital Eyepiece MANUAL Turret Sensor Loading HVS-10EHY: Test Force 10Kgf, Digital Eyepiece MANUAL Turret Sensor Loading
HVS-30EHY: Test Force 30Kgf, Digital Eyepiece MANUAL Turret Sensor Loading HVS-50EHY: Test Force 50Kgf, Digital Eyepiece MANUAL Turret Sensor Loading
Data Treat: Wireless Bluetooth Printer, And Output Data Through RS232 And USB Interfaces Hardness Conversion: Automatically Convert The Unit Of The Full Hardness Scale


Digital Eyepiece MANUAL Turret Vickers Hardness Tester with closed loop Sensor Loading

Model: HVS-5EHY

Technical Data Download:
iqualitrol Vickers Hardness Tester HVS-5EHY

product description:
Iqualitrol HVS-5/10/30/50EHY digital display MANUAL turret Vickers hardness tester, using high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation;

The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;

Closed-loop electric charging is adopted, with overload and over-position automatic protection functions; the test process is automated, and there is no human error in operation;

Equipped with MANUAL turret function, high-resolution measurement and observation objective lens, combined with high-definition digital micrometer eyepiece with built-in length encoder, it realizes one-key measurement of indentation diagonal line, eliminating human operation interference and reading errors;

Convenient operating system, which can automatically convert the unit of the full hardness scale;
The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;

Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;
Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;

The precision complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.



Main Parameters:

Model HVS-5/10/30/50EHY
Range of Measurement 5-5000HV
Test Force Loading Mode SENSOR Loading
HVS-5EHY

0.3,0.5,1.0,

2.0,3.0,5.0kgf

HVS-10EHY

0.3,0.5,1.0,

3.0,5.0,10kgf;

HVS-30EHY

0.3,0.5,1.0,

5.0,10.0,30.0kgf

HVS-50EHY

1.0,5.0,10.0,

20.0,30.0,50.0kgf.

Data Entry Mode AUTOMATIC
Turret Mode MANUAL TURRET
Maximum Height of Specimen 200mm
Distance between Indenter Center and Wall 130mm
Objective HVS-5/10/30EHY serial



10×,40×



HVS-50EHY 10×,20×
Magnifications 100×,400× 100×,200×
Eyepiece Measure Resolution 0.025μm 0.1μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 620*330*650mm
Weight 75kg



Accessories Box:



Micrometer Eyepiece One PC The Small Anvil One PC
The Big Anvil One PC Diamond Vickers Indenter One PC
V-type Anvil One PC Standard Vickers Hardness Block Two Blocks
